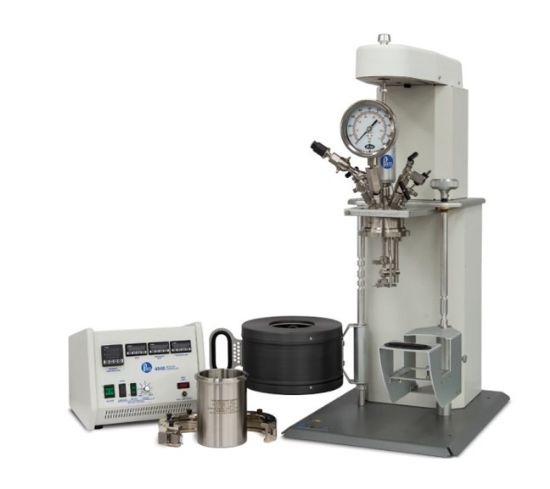

A)2000 ml Fixed head bench top reactor
B) Vessel MAWP Rating: 131 bar at 350°C.
C) Head, cylinder, magnetic drive, and internal wetted parts (in direct contact with process liquid) constructed of Hastelloy C-276
D) Vapor-containing external valves and fittings constructed of stainless steel.
E) PTFE Flat Gasket stable up to 300 C
F) Head to include:
a. Heavy Duty Footless Magnetic Drive, 60 in-lb. with stirrer shaft
b. Pressure gauge 0-2000 psi
c. Gas release valve
d. Double valve assembly with inlet valve and sampling valve over dip tube.
e. Safety rupture disc
f. Thermocouple, Type J
H) Bench top mantle heater, 230V
I) Variable speed motor, 1/2 hp
J) 4848 Reactor Controller with the following specifications:
a. PID temperature control with ramp and soak programming
b. Manual speed adjustment knob, 0-600 rpm
c. 230V Electrical
K) Serpentine Cooling Coil made of Hastelloy C-276
L) ASME Certification
