The ÄKTA pure™ micro chromatography system enables a flow path with low hold-up volumes and provides a complete solution for small sample volumes and micro preparative columns. ÄKTA pure micro comprises: Inlet valve kit: V9-IAB, selection between 2 A and 2 B inlets in a single valve. System pump: 2 bio-inert high performance dual piston pumps 0.001-25 mL/min, 0-20 MPa. Pressure sensor: one pressure sensor placed after system pump. Mixer: Gradient mixer with 0.6 mL chamber included. Injection valve: V9M-J, connections for automated sample application from loop. UV monitor: U9-M, triple variable wavelength, detects most biomolecules, monitors absorbance at three wavelengths simultaneously, range 190-700 nm. Conductivity monitor: C9-M, wide-range (0.01 to 999.99 mS/cm), for gradient verification in all common chromatography techniques. Outlet valve kit: V9M-Os, 1-outlet, switch between fraction collector, one outlet position and waste.

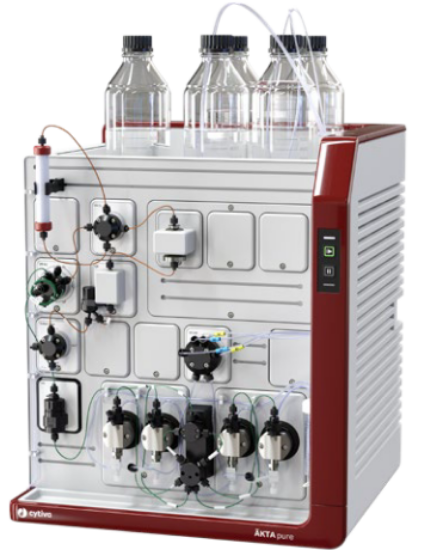

AKTA PURE MICRO
The ÄKTA pure™ micro chromatography system enables a flow path with low hold-up volumes and provides a complete solution for small sample volumes and micro preparative columns. ÄKTA pure micro comprises: Inlet valve kit: V9-IAB, selection between 2 A and 2 B inlets in a single valve. System pump: 2 bio-inert high performance dual piston pumps 0.001-25 mL/min, 0-20 MPa. Pressure sensor: one pressure sensor placed after system pump. Mixer: Gradient mixer with 0.6 mL chamber included. Injection valve: V9M-J, connections for automated sample application from loop. UV monitor: U9-M, triple variable wavelength, detects most biomolecules, monitors absorbance at three wavelengths simultaneously, range 190-700 nm. Conductivity monitor: C9-M, wide-range (0.01 to 999.99 mS/cm), for gradient verification in all common chromatography techniques. Outlet valve kit: V9M-Os, 1-outlet, switch between fraction collector, one outlet position and waste.
