Labfors 5 for solid substrates – Your ideal bioreactor system for bioprocesses and enzymatic processes with solid substrates

Increase productivity and yield during your simultaneous saccharification and fermentation (SSF) processes, breaking down high concentrations of various raw materials, with this compact Labfors 5 bench-top bioreactor.

Features:

Precise temperature control with a two-fold temperature control system.

Ideal mixing capabilities with high toque, direct drive motor, and a selection of stirrers.

Large headplate opening (40mm) for feeding solids and semi solids into vessel.

Operation as single or parallel bioreactor with up to 6 vessels.

Touch screen controller with OPC server for local control or connection with SCADA software.

Digital instrumentation with up to 24 parameters per vessel.

Integrated signal interface in-/output for integration of external measurement values and control of external pumps etc.

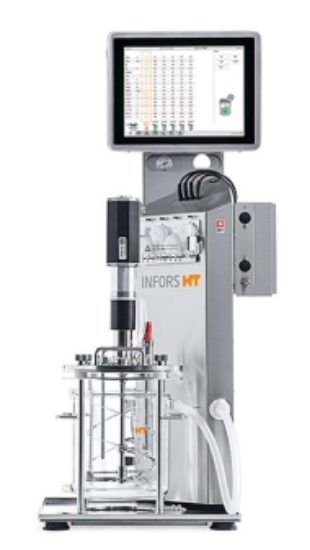

Labfors 5 Solids & Enzymatic 3.6 L TV consisting of:

1. Labfors 5 Solids & Enzymatic 3.6 L TV
1.1. Base unit
1.1.1. Bench-top bioreactor
1.1.2. Drive - 3.4 Nm,1000 min-1; 230V
1.1.3. Culture vessel - 3.6 L TV NW150
1.1.4. Basic functions - 230 V
1.1.5. Operating panel with touch screen
1.1.6. Starter set for Labfors 5 BioEtOH
1.1.7. Reagent bottle and pump head holder
1.1.8. Piercing needle, twistable
1.1.9. Digital sensor connection
1.2. Gas Strategy
1.2.1. 1 gas connection
1.2.2. Rotameter 0.3-4.7 NL/min air 1/4"
1.2.3. Montage kit for rotameter
1.3. Accessories
1.3.1. Exit gas cooler
1.3.2. Reagent bottle - 250 mL
1.3.3. Air tube with sterile sleeve
1.4. pH sensor
1.4.1. Hamilton EasyFerm Plus Arc 225 mm
