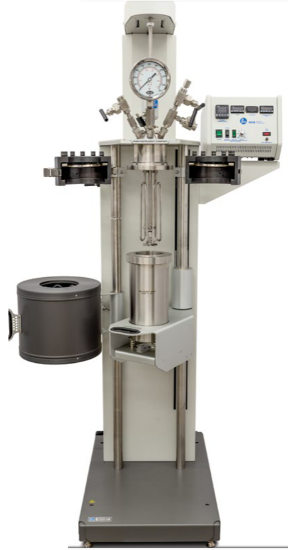

The Parr 4584-1.5GAL, Custom 4584-T-Ti2-XHD-(Ti2)-230-VS.50-2000-BDV-4848B-PDM-HTM-ETLM-SVM-RTC-ASME is a high-performance 1.5 gallon fixed head floor standing reactor designed for challenging chemical processes. Constructed with Titanium Grade 2 for all wetted parts, it offers superior corrosion resistance and durability. Rated for pressures up to 1300 psi and temperatures up to 300°C, this reactor features a powerful 120 in-lb magnetic drive, a comprehensive 4848B expanded reactor controller, and multiple safety and control modules, making it suitable for research and pilot scale applications.
Product Features
- 1.5 Gallon fixed head floor standing reactor
- Vessel MAWP rating: 1300 psi at 300°C
- Head, cylinder, magnetic drive, and internal wetted parts constructed of Titanium Grade 2
- Vapor-containing external valves and fittings made of stainless steel
- PTFE gasket stable up to 350°C
- Magnetic drive with 120 in-lb torque and stirrer shaft
- Pressure gauge rated 0–2000 psi
- Gas release valve
- Double valve assembly with inlet and sampling valve over dip tube
- Safety rupture disc
- Type J thermocouple
- Serpentine cooling coil
- 230 V heating mantle
- Variable speed motor, ½ hp
- 4848B expanded reactor controller with PID temperature control, ramp and soak programming
- Manual speed adjustment knob (0–600 rpm)
- 230 V electrical system
- Pressure display module (PDM)
- High temperature cut-off module (HTM)
- External temperature limit module (ETLM)
- Solenoid valve module (SVM)
- ASME certified pressure vessel
- Pneumatic lift for easy head movement
- Condenser assembly with reflux take-off
- Spare parts kit for 4580 series included
Benefits
- Superior corrosion resistance with Titanium Grade 2 wetted parts for harsh chemicals
- Robust design ideal for research and pilot scale chemical processes
- Advanced control system with multiple safety and monitoring modules
- Pneumatic lift simplifies reactor head handling for enhanced safety and convenience
- Complete accessory kit including condenser and spare parts enhances versatility
- ASME certification guarantees compliance with industry safety standards
Why Choose the Parr 4584 Custom Titanium Reactor?
This Parr 4584 reactor delivers reliable performance and exceptional durability for large-scale chemical reactions requiring corrosion resistance and precise control. Equipped with advanced safety features and an intuitive control system, it is a trusted choice for demanding laboratory and pilot plant environments.
