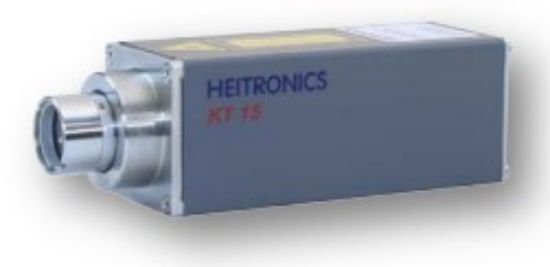

Infrared Radiation Thermometer
- Highest accuracy and long-term stability
- Vacuum tight objectives
- Fast response time from 5 ms on - even at low temperatures
- RS485 interface option
Detector type : A
Temperature range: -100 .. 200°C special
Measuring range : -100 .. 200°C
Response time 30ms - 600s
Set on : 1s
Emissivity 0.10 - 1.00
Set on : 1
Output 0(4)-20mA / 0-1(10)V
Set on : 4 - 20mA
Option output : True value
Power Req: 10,5-30VDC / 24VAC +-10% 48-400Hz
Enviroment temperature: - 20 .. 60°C
Lens 26mm: M6 - Ge
Field of measurement diameter: 3100 mm
Object distance: 5000 mm
RS485 - isolated - full duplex-Standard 0
Connection cable PTFE; length 5m
Socket 12p. - unterminated ends
Instruction manual Language English
Radiance table in digital format
