- Accuracy ±2 graduations <2500 g; ±1 graduation >2500 g
- Handheld or test stand, mounting holes provided
- Dual graduations for decimal pounds/grams and ounce/grams.
- Tension/compression, push and pull from opposite ends
- Maximum reading memory, maximum reading held automatically; push-button returns pointer to zero
- Compact size and weight 2.25 in. dial diameter; 10 oz weight
- Plunger movement, approximately 0.4" (10 mm) full scale deflection
- Construction, high-impact plastic case, aluminum dial, galvanized steel spring, stainless steel plungers and accessories, brass mechanism chassis and plexiglass dial crystal

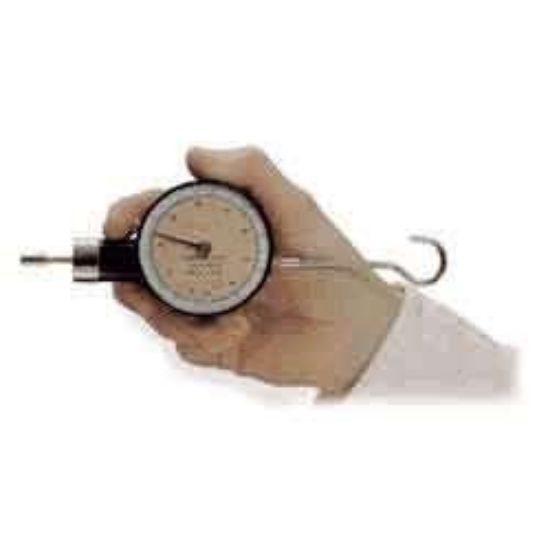

The FDK Series force dials feature both decimal lb/gram models as well as equivalent oz/gram models. Now with nine models, they are even more useful in a broad range of push-pull applications up to 60 lb. These units feature improved readability, a variety of accessories and carrying case.
Whats Included:
Stainless steel attachments including a flat head, extended point, tension hook, and carrying case with manual.
