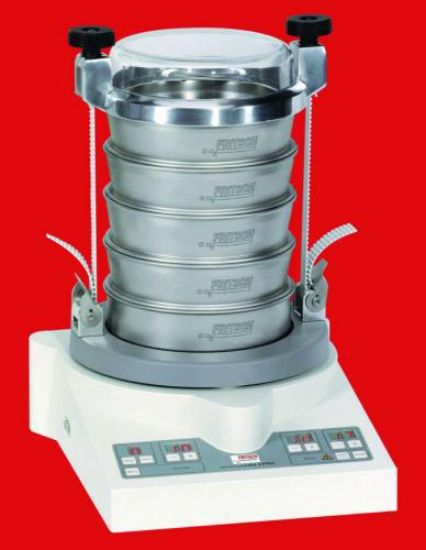

Vibratory Sieving Machine "Analysette 3", Pro W/O Accessories, for Sieve Diameter 200 mm or 8" (maximum)
For quantitative particle size analysis of dry samples and suspensions of all kind by dry and wet sieving with woven test sieves. FRITSCH Sieve Shakers satisfy all requirements for accurate and reproducible sieving analysis and perform automatic sieve analysis with the control and evaluation software AUTOSIEVE, which is delivered as trial version for 90 days. The top model ANALYSETTE 3 PRO guarantees absolutely reproducible sieving results due to automatic amplitude control, programme selection, can be integrated as testing device into any quality management systems, has an RS232-interface, to mention only some of its innovative and practical features.
Sieving: dry or wet
Sieve diameters: 100mm, 200mm or 8"
Maximum number of sieves: 10 x 50 mm (full) or 16 x 25 mm (half) height
Sieves: woven mesh metal sieves
Measuring range: Dry sieving: 20 µm to 63 mm
Wet sieving: 20 µm to 10 mm
Sample quantity: Dry sieving: up to 2 kg (depending on the sample material and sieve used)
Wet sieving: 20 to 100 g
Sieving time: Dry sieving: 3 to 20 min
Wet sieving: 3 to 10 min
Power supply: 100-240 V/1~, 50-60 Hz, 50 W
Dimensions (W x D x H): 370 x 400 x 200 mm
Net weight: 21 kg
