Model:045 - Very high temperature low noise PFA cable, 2-conductor, twisted pair, shielded_1087449

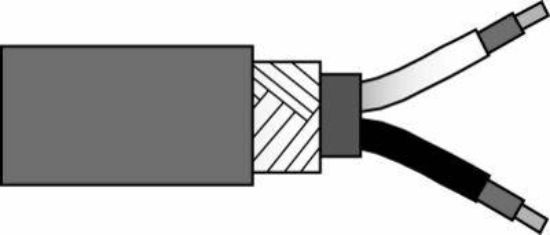

Representative image only

Model:045 - Very high temperature low noise PFA cable, 2-conductor, twisted pair, shielded

$17.60

The price is inclusive of GST
Cable
Very high temperature low noise PFA cable, 2-conductor, twisted pair, shielded


Product Specifications
 ENGLISHSI
Performance
    Number of Conductors22
    Cable StyleMulti Conductor - Shielded - Low NoiseMulti Conductor - Shielded - Low Noise
    Cable ConfigurationTwisted PairTwisted Pair
Environmental
    Temperature Range-130 to +500 °F-90 to +260 °C
Electrical
    Impedance (±5 Ohm)50 Ohm50 Ohm[1]
    Capacitance (±5 pF/ft) (conductor to conductor @ 70 °F (21 °C))35 pF/ft114.83 pF/m
    Noise Level (pk - pk)<20><20>
Physical
    Cable Jacket Diameter0.204 in5.18 mm[1]
    Cable Jacket MaterialPTFEPTFE
    Cable Jacket ColorRedRed
    Conductor StyleStranded - 7 Strands 30 AWGStranded - 7 Strands 30 AWG
    Conductor MaterialNickel Plated CopperNickel Plated Copper
    Conductor Diameter (22 AWG)0.030 in0.762 mm[1]
    Shield Type Over BundleBraid: 85% Minimum CoverageBraid: 85% Minimum Coverage
    Shield Material Over BundleNickel Plated CopperNickel Plated Copper
    Low Noise Barrier Material (Over Conductor)Graphite Impregnated PTFE TapeGraphite Impregnated PTFE Tape
    Low Noise Barrier Material (Over Insulator)Graphite Impregnated PTFE TapeGraphite Impregnated PTFE Tape
    Low Noise Barrier Material (Over Bundle)Graphite Impregnated PTFE TapeGraphite Impregnated PTFE Tape
    Bend Radius (minimum)2 in50.8 mm
    Weight0.434 oz/ft40.32 gm/m[1]

All specifications are at room temperature unless otherwise specified.
Product Notes
[1] Typical.
Accessories:
No Accessories
Optional Versions:
No optional versions
