Temperature
Working temperature range
at least 5 (UN/UNplus/UNm/UNmplus) or 10 (UF/UFplus/UFm/UFmplus) above ambient temperature to +300 °C
Setting accuracy temperature
up to 99.9 °C: 0.1 / from 100 °C: 0.5
Setting temperature range
+20 to +300 °C
Temperature sensor
1 Pt100 sensor DIN class A in 4-wire-circuit
Control technology
Language setting
German, English, Spanish, French, Polish, Czech, Hungarian
ControlCOCKPIT
SingleDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-colour display
Timer
Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
Function SetpointWAIT
the process time does not start until the set temperature is reached
Calibration
three freely selectable temperature values
adjustable parameters
temperature (Celsius or Fahrenheit), fan speed, air flap position, programme time, time zones, summertime/wintertime
Ventilation
Fan
forced air circulation by quiet air turbine, adjustable in 10 % steps
Fresh air
Admixture of pre-heated fresh air by electronically adjustable air flap
Vent
vent connection with restrictor flap
Communication
Documentation
programme stored in case of power failure
Programming
AtmoCONTROL software for reading out, managing and organising the data logger via Ethernet interface (temporary trial version can be downloaded). USB stick with AtmoCONTROL software available as accessory (on demand).
Safety
Temperature control
adjustable electronic overtemperature monitor and mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature
Autodiagnostic system
for fault analysis
Standard equipment
Door
fully insulated stainless steel door with 2-point locking (compression door lock)
Internals
2 stainless steel grid(s), electropolished
Works calibration certificate
Calibration at +160°C
Stainless steel interior

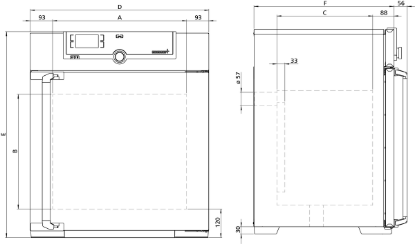

Dimensions
w(A) x h(B) x d(C): 560 x 480 x 400 mm (d less 39 mm for fan)
Interior
easy-to-clean interior,made of stainless steel, reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides
Volume
108 l
Max. number of internals
5
Max. loading of chamber
175 kg
Max. loading per internal
20 kg
Textured stainless steel casing
Dimensions
w(D) x h(E) x d(F): 745 x 864 x 584 mm (d +56mm door handle)
Housing
rear zinc-plated steel
Electrical data
Voltage Electrical load
230 V, 50/60 Hz
approx. 2800 W
Voltage Electrical load
115 V, 50/60 Hz
approx. 1800 W
