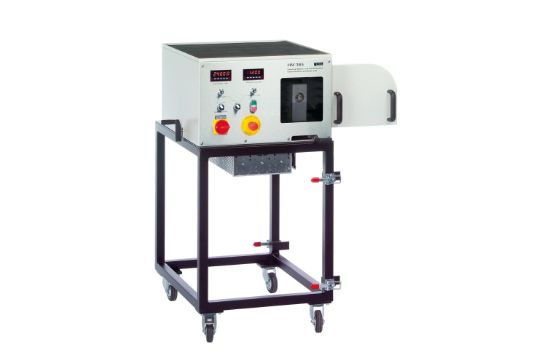

The GUNT Universal Drive and Brake Unit serves as the base module for fluid machinery experiments, enabling students to study water and oil pumps, turbines, and related systems engineering and engine technologies within the FEMLine series.
Product Features
- Base module designed for experiments on fluid machinery as part of the GUNT FEMLine training series.
- Compatible with various fluid energy machines connected via belt drive and secured with fasteners.
- Equipped with an air-cooled asynchronous motor with frequency converter, functioning as a motor or generator as required.
- Operates as a motor to power fluid energy machines such as pumps or compressors.
- Functions as a generator to brake motors or turbines, converting braking energy into heat via a load resistor.
- Drive and brake torque can be precisely adjusted and are measured by a force sensor.
- The asynchronous motor is pendulum-suspended and can be moved to tension the V-belt.
- Fitted with digital displays for speed and torque for real-time monitoring.
- Data exchange between base module and accessories occurs through a data cable.
- Measured values can be transmitted simultaneously via USB to a PC for analysis.
- Each accessory comes with specific evaluation software for experiment operation and data processing.
Benefits
- Provides versatile power and braking capability for diverse fluid machinery experiments.
- Enables precise control and measurement of torque and speed for accurate experiment results.
- Seamless integration with multiple accessories broadens experimental scope.
- Real-time data acquisition and PC connectivity enhance analysis and reporting.
- Robust design supports reliable and safe educational use.
Why Choose the GUNT Universal Drive and Brake Unit?
The GUNT Universal Drive and Brake Unit is an essential base module for fluid machinery training, offering adaptable drive and braking functions with precise control and measurement. Its compatibility with a wide range of accessories and advanced data handling capabilities make it an indispensable tool for engineering education and research.
