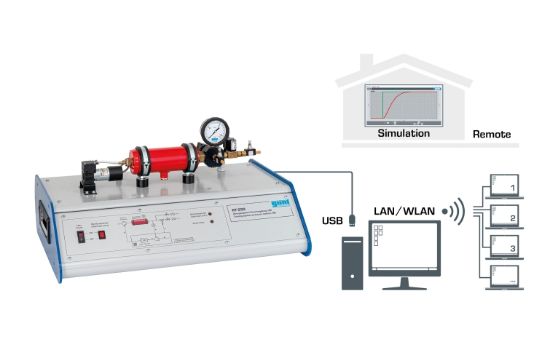

The GUNT Training System Pressure Control, HSI provides fundamental experiments on pressure control using an air-filled pressure vessel as the controlled system. The pressure is measured by a pressure sensor, whose output is processed by a software controller to regulate compressor speed, adjusting the flow rate. A flow control valve acts as a pneumatic consumer, and a solenoid valve can be switched via software to activate a second flow control valve simulating a second consumer. Pressure can be monitored continuously via a dial-gauge manometer. The system integrates with GUNT’s Hardware/Software Integration (HSI) software through a USB connection to a PC, allowing for real-time control response visualization and simulation of control systems up to 2nd order. This setup supports remote learning and multi-station observation via local network, making it ideal for technical training and research.
Product Features
- Basic pressure control experiments using an air-filled pressure vessel
- Pressure sensor measures controlled variable continuously
- Compressor speed regulated by software controller to influence flow rate
- Flow control valve simulates pneumatic consumer behavior
- Solenoid valve activation enables study of disturbance variables via a second flow control valve
- Pressure reading available on dial-gauge manometer
- Real-time control response displayed as time-dependent graphs
- Integration with GUNT Hardware/Software Integration (HSI) software
- USB interface connects experimental unit to external PC
- Programmable reference values and timed progressions for experiments
- Software simulations cover control systems up to 2nd order dynamics
- Supports remote learning with pre-experiment preparations and simulations
- Multi-workstation access via local network enables collaborative learning
- Part of a broad control technology training series covering level, flow, pressure, temperature, speed, and position
Benefits
- Hands-on experience with pneumatic pressure control systems
- Facilitates understanding of disturbance impacts and control responses
- Supports both in-person and remote technical education
- Powerful software enhances analysis and visualization of system behavior
- Multi-user network access supports group learning and collaboration
Why Choose the GUNT Training System Pressure Control, HSI?
The GUNT Pressure Control Training System, HSI combines real-world pneumatic hardware with advanced simulation software to provide a comprehensive learning platform for control engineering. Its user-friendly design and versatile software integration make it well-suited for educational institutions and technical training centers aiming to teach modern process control techniques effectively.
