The GUNT Training System Position Control, HSI offers fundamental experiments on position regulation using a moving slide driven by a toothed belt as the controlled system. The slide’s position is measured by a rotary encoder, which feeds its output to a software controller. The controller adjusts a motor actuator to move the slide to new positions along the belt, automatically switching off when the slide reaches either end. The current position can be read directly on a steel scale. The system provides real-time control response displayed as time-dependent graphs, with a transparent protective cover for safe observation. Connected via USB to a PC, it integrates with GUNT’s Hardware/Software Integration (HSI) software, supporting programmable reference values and simulations up to 2nd order control systems. Remote learning and multi-user observation via local network enable flexible, collaborative training.
Product Features
- Basic position control experiments using a moving slide on a toothed belt
- Rotary encoder measures slide position accurately
- Software controller adjusts motor to move slide to target positions
- Automatic motor shut-off at slide end positions for safety
- Position readable on steel scale for direct feedback
- Control response displayed as time-dependent graphs
- Transparent protective cover ensures safe experiment observation
- Integration with GUNT Hardware/Software Integration (HSI) software

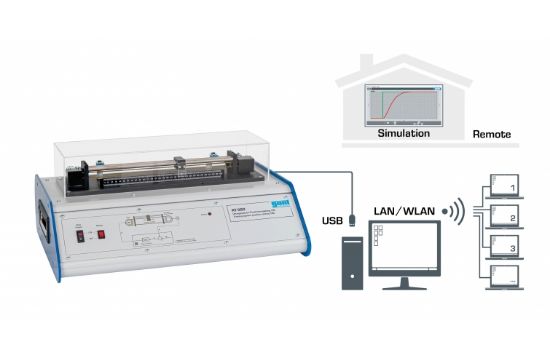

- USB interface connects experimental unit to external PC
- Programmable reference values and timed control progressions
- Software simulations for control systems up to 2nd order dynamics
- Supports remote learning with pre-experiment preparations and simulations
- Multi-workstation access via local network enables collaborative learning
- Part of a comprehensive control technology training series covering essential control variables
Benefits
- Hands-on experience with position control and feedback systems
- Facilitates understanding of precise actuator control and position feedback
- Supports both classroom and remote technical education
- Powerful software tools for visualization and detailed control analysis
- Enables collaborative learning with networked multi-user support
Why Choose the GUNT Training System Position Control, HSI?
The GUNT Position Control Training System, HSI combines physical precision hardware with advanced simulation software to provide comprehensive education in position control systems. Designed for flexibility and safety, it is ideal for academic institutions and training centers aiming to deliver effective control engineering instruction.
