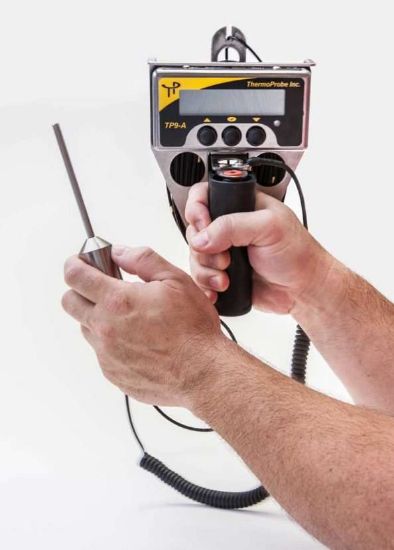

The ThermoProbe TP9-A Thermometer, 25 ft, Railcar Weight Probe, No Brass Markers (TP9A-025-RC-NM, JMG item TP9A-025-RC-NM) is a Zone 0 intrinsically safe portable petroleum gauging thermometer for cargo inspection and tank gauging in hazardous locations. This configuration includes a 25 ft / 7.5 m cable, Railcar Weight probe, no brass markers, ATEX/IECEx certification Ex ia IIB T4 Ga and an ambient operating range of -20 °C to +40 °C.
Key Features
- Brand: ThermoProbe
- Model / Part Number: TP9A-025-RC-NM
- Series: TP9-A
- JMG Item Reference: TP9A-025-RC-NM
- Product Type: Intrinsically safe portable petroleum gauging thermometer
- Cable Length: 25 ft / 7.5 m
- Probe Type: Railcar Weight probe
- Probe Application: Specialty probe for small diameter gauging tubes fitted in many tanker cars
- Cable Markings: No brass markers
- Certification: ATEX and IECEx, Ex ia IIB T4 Ga
- Ambient Temperature Range: -20 °C to +40 °C
- Temperature Measuring Range: -40 to +204 °C / -40 to +400 °F
- Resolution: 0.01
- Calibrated Accuracy: ±0.1 °C from 0 to 100 °C; ±0.3 °C from 100 to 200 °C
- Sensor Type: High accuracy RTD temperature sensor
- Probe Assembly: Non-stick cable with stainless steel weighted RTD sensor
- Probe Materials: Stainless steel, sealant, aramid fibre reinforced FEP or PFA cable jacket
- Instrument Body: Stainless steel and static-dissipative plastic components
- Display: Large 1/2 inch alpha-numeric character display with automatic backlight
- Battery Type: 2 AA alkaline batteries
- Battery Life: Approximately 200 hours
Note: This TP9-A configuration is supplied with no brass cable markers. Always confirm site procedures, hazardous area approval, probe length and probe style against the current ThermoProbe documentation before use.
Benefits
- Supports petroleum gauging and cargo inspection in hazardous locations with Zone 0 intrinsically safe approval.
- Provides ergonomic probe storage and stainless construction suited to heavy products that are difficult to clean, such as asphalt.
- Improves handling in low light and field conditions with a large display, automatic backlight and glove-friendly buttons.
- Helps suit railcar gauging applications through a probe style designed for small diameter gauging tubes.
- Supports field use with replaceable AA batteries and approximately 200 hours of operation.
- Offers easy-to-clean probe materials including stainless steel and non-stick cable construction.
Why Choose the ThermoProbe TP9-A Thermometer, 25 ft, Railcar Weight Probe, No Brass Markers?
The ThermoProbe TP9-A Thermometer, 25 ft, Railcar Weight Probe, No Brass Markers is suited to petroleum, petrochemical and hazardous-location tank gauging workflows where intrinsically safe temperature measurement is required. John Morris Group supplies this ThermoProbe thermometer for cargo inspection, custody transfer, inventory checks and railcar gauging applications requiring a 25 ft cable, railcar probe and no cable marker configuration.
