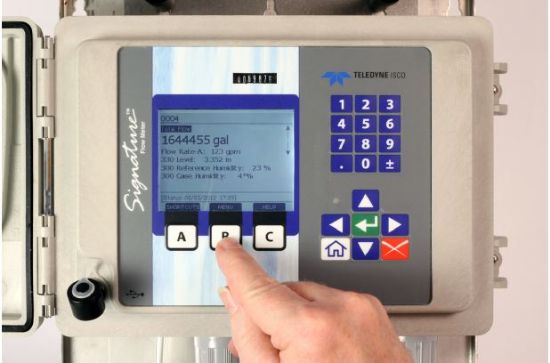

Teledyne Signature Area Velocity Flow Meter System is a flexible, configurable solution for permanent discharge compliance monitoring of water, wastewater, and stormwater flow rates.
Product Features
- Signature Flow Meter with Area Velocity Sensor for accurate open channel flow measurement
- Supports multiple flow technologies: bubbler, ultrasonic, continuous wave area velocity, and non-contacting LaserFlow™ velocity
- Calculates flow using standard open channel level-to-flow and area velocity conversions, as well as user-defined equations, level to area, or level to flow data points
- Data integrity verification with logging of calibration changes and power outages
- Multiple smart interface options and multi-parameter logging (e.g., pH)
- Compatibility with Flowlink software for control, reporting, and communication
- Triggering and sampler enabling
- SDI-12, RS-485 Modbus input/output, and optional rain gauge input
Applications
- Industrial pretreatment compliance
- Shallow flow measurement in large and small pipes
- Permit enforcement
- Wastewater treatment plants
- Outfall monitoring
Options and Accessories
- TIENet 301 pH/Temperature Device
- TIENet 304 Contact Output Card (two user-assignable outputs per card)
- TIENet 306 Sampler Interface (triggering and pacing)
- TIENet 307 Analog Input Card (two user-assignable inputs per card)
- TIENet 308 Analog Output Card (two user-assignable outputs per card)
- TIENet 310 Ultrasonic Level Sensor
- TIENet 330 Bubbler Module
- TIENet 350 Area Velocity Sensor
- TIENet 360 LaserFlow™ Non-contacting Area Velocity Sensor
- Battery backup power
- Mechanical totalizer
- Advanced cellular and Ethernet communication options
- Mounting hardware
Benefits
- Reliable and accurate flow measurement for water, wastewater, and stormwater
- Flexible selection of flow technology to suit the site and channel conditions
- Ensures data integrity through verification and event logging
- Seamless integration with Flowlink software for advanced analysis, reporting, and communication
- Configurable for multiple applications with optional accessories
Why Choose Teledyne Signature Area Velocity Flow Meter?
The Teledyne Signature Area Velocity Flow Meter offers a robust, versatile platform for open channel flow monitoring. With multiple simultaneous flow technologies, comprehensive data logging, and flexible interface options, it delivers accurate, reliable, and compliant flow measurement for municipal, industrial, and environmental applications.
