The Teledyne Network Interface Module is a powerful, versatile solution for environmental monitoring professionals to interface multiple monitoring and recording instruments. This version includes a built-in 3G GSM cellular modem for Europe/Region B countries, a battery module, manhole-mounted antenna, carrying handle, and maintenance kits. Designed for rugged field use, it supports seamless data communication, intelligent event response, and flexible device integration.
Product Features
- 2105 Network Interface Module for flow and parameter data interchange
- Monitors recorded data and initiates actions such as sampler enabling and alarm generation based on user-defined conditions

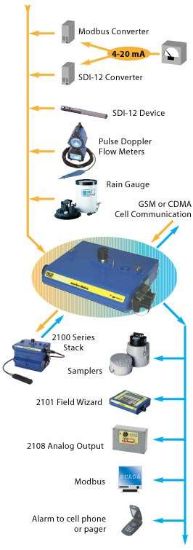

- Compatible with Teledyne 2100 Series Flow Modules, ADFM pulsed-Doppler flow meters, and Teledyne rain gauges
- Interfaces with non-Teledyne instruments via SDI-12 or Modbus outputs
- Optional input compatibility using aftermarket converters (4-20 mA, etc.)
- Built-in 3G GSM modem for remote data access and transmission
- Modular design allows stacking with up to three other Teledyne 2100 Series modules
- Rugged, submersible enclosure meets NEMA 4X, 6P and IP68 requirements
- Multiple factory-available cables for flexible instrument configurations
- Variable rate data storage to capture detailed information during exceptional events while conserving resources during normal conditions
- Secure flash memory storage protects data during power failures
- Records and stores input voltage and temperature data
- High-speed 38400 bps communication for efficient setup and retrieval
Applications
- Capacity assessments
- Inflow and infiltration (I&I) monitoring
- cMOM, SSO, and other collection system monitoring
- Permit compliance and enforcement
- Stormwater runoff monitoring
- Non-point source pollution monitoring
- River and stream gauging
Benefits
- Enables intelligent, event-driven monitoring and control
- Integrates easily with a wide range of Teledyne and third-party devices
- Provides reliable, secure data storage and retrieval in all conditions
- Supports remote communication to reduce site visits and improve safety
Why Choose The Teledyne Network Interface Module?
Offering exceptional connectivity, robust construction, and intelligent data management features, the Teledyne Network Interface Module delivers a reliable and adaptable solution for advanced environmental monitoring and compliance applications.
