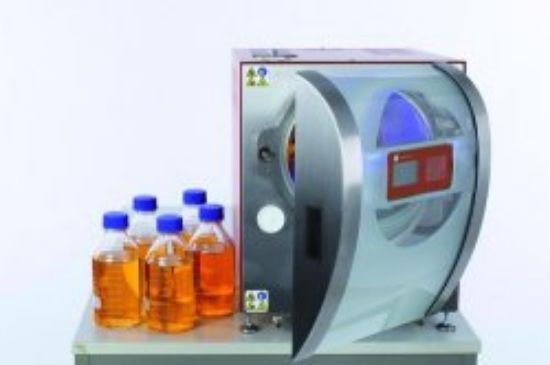

The SHP Steriltechnik AG Laboklav LAV 25-MV Combi Standard is a compact and space-saving bench-top steam steriliser that combines efficient sterilisation with an integrated fast liquid air cooling function. Ideal for sterilising liquids, instruments, and waste, it provides precise control and enhanced safety for laboratory operations.
Product Features
- Sterilisation of liquids in open and lightly closed vessels, with air re-cooling system
- Sterilisation of instruments with optional pre-vacuum and drying vacuum
- Waste sterilisation at 134 °C
- Optional exhaust air filtration system
- Chamber volume: 25 L; Chamber size: Ø 265 mm x 465 mm
- Max. permissible pressure: 2.8 bar; Sterilising temperature: 98 to 138 °C
- Optimal chamber volume usage - sufficient for 5 x 1 L bottles including caps
- Lid made of temperature-resistant safety glass; Lid cover also safety glass
- LED front lighting to visualise cycle progress
- Motor-driven and self-checking lid closing mechanism
- Flexible temperature reference sensor PT100 included
- Thermo locking device according to IEC 61010-2-40
- Chamber illumination by white LED light
- Load capacity: up to 5 kg of instruments
- External dimensions (W x D x H): 440 mm x 540 mm x 660 mm; Table space requirement: 440 mm x 550 mm + 110 mm for door overhang
- Chamber material: Stainless steel; Housing: Powder-coated red with front cover of transparent safety glass; Process illumination in blue, red, and green LED
- Integrated steam generator with dry heating elements; Heating power: 2 kW; Electrical connection: 230 V ~ 50 Hz, 16 A
- Sterilisation temperature adjustable from 98 to 135 °C; Integrated feed water tank with manual filling
- Exhaust steam condensing included; Discharge into integrated condensate tank
- Microprocessor control with LCD display; Code-protected access; Serial interface RS 485; Internal storage chip for approx. 150 cycle data
- Up to 10 programs; All programs can be individualized
- Manufactured in Germany; Compliance with relevant norms and regulations; Serial approval by German TUV, CE marking according to Pressure Device Directive
- Integrated fast liquid air cooling function for accelerated cooling of sterilised liquids
Benefits
- Compact design saves valuable laboratory space
- Efficient sterilisation of liquids, instruments, and waste
- Integrated fast cooling function reduces waiting time for liquids
- Precise temperature control and monitoring for reliable sterilisation
- LED illumination and motorized lid enhance usability and safety
- Optional programs and accessories increase operational flexibility
Why Choose SHP Steriltechnik AG Laboklav LAV 25-MV Combi Standard?
This bench-top steam steriliser offers a reliable, efficient, and safe solution for laboratory sterilisation tasks. With integrated fast liquid air cooling, precise controls, and German engineering, it is ideal for research, clinical, and industrial laboratories.
