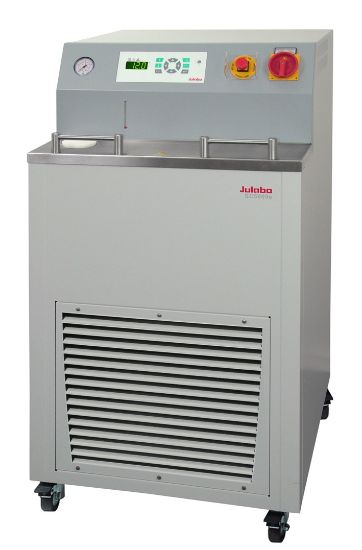

The SemiChill series offers powerful recirculating coolers. These units have
been especially designed for applications in the semiconductor industry. Five
models are available, with cooling capacities from 2.5 to 10 kW (air- or watercooled).
Working temperature ranges from +5 to +35 °C which can
optionally be extended from -20 to +130 °C. Also available is a selection of
powerful pumps. The units can be modified to provide heater capacities up
to 5 kW. Selection between different electronic modules to conform to simple
or high demands such as, for example flow rate and conductivity
measurement, external temperature control or integration of the coolers via
analogue signals, RS232, devicenet or ethernet. A large range of
accessories and options including DI filters, microfilters, USB adapters, etc.
is available.
Your advantages
- For the most demanding applications
- Space-saving, no lateral ventilation
- Handles and castor make relocation easy
- Industrial grade mains power switch and emergency cut-off
- Pressure gauge
- Liquid level indicator
- Front filling port
- Low noise level
- PID temperature control
- ATC3 3-point calibration
- Early warning system for low liquid level
- Warning and safety functions
- Modular design allows selection between different options
- Air cooled model
