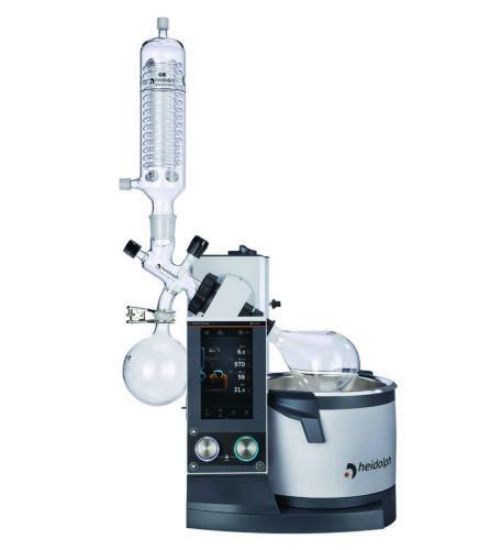

Rotary evapor. Hei-VAP Ultimate Control ML/G6 with motor lift
Hei-VAP Expert Control and Ultimate Control are central control units for regulation of all process parameter: vacuum, cooling temperature, rotation and heating bath temperature.
-Available as hand or motor lift
-5'' touch display at Hei-VAP Expert Control and 7'' at Hei-VAP Ultimate Control for controlling the entire system including the vacuum and the cooling temperature
-For precise monitoring, the pictogram on the-display also symbolizes active functions
-Separate knobs for quick access: the right one for direct vacuum control, the left one for the rotation
-Setting of values either via the touch display or the separate quick access knobs
-Direct access to two favorites on the start screen
-Expandable solvent library: user defined favorites can be transfered to other devices using a USB stick
-User defined evaporation processes (ramps) can be defined and saved
-Automatic evaporation with the Dynamic AUTOaccurate Program (DAA)
-USB and Micro SD interfaces, Hei-VAP Ultimate Control additionally with LAN- / RS 232 interface (Lab 4.0-ready)
Scope of supply: Flask clamp Easy-Clip, vapour tube, ventilation cap, heating bath, 1-l receiving flask, 1-l evaporating flask, Control-Box. Supplied condensor as indicated.
