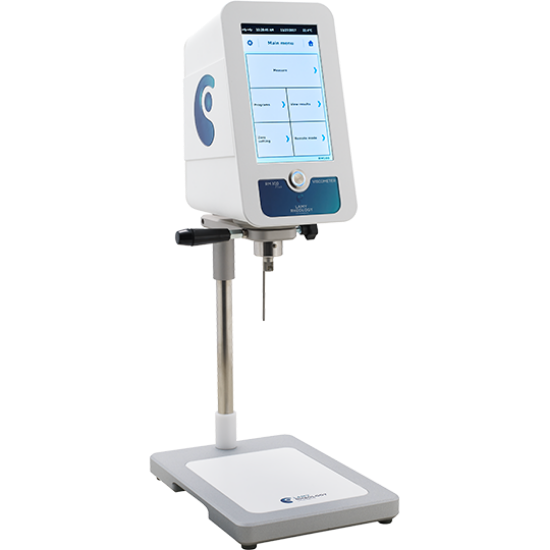

The RM100 PLUS is the viscometer with largest speed and torque range available on market.
Create your methods and store your results in relation with your application.
Features and Benefits:
- Direct control of temperature unit
- Huge viscosity range
- Programming and recording method
- DIrect measure with time to stop
- User and locked mode
- Data recording and USB transfer
- Torque gage on display
- Integrated temperature probe
- Printer connection
- Compatible with RheoTex software
Specifications:
- Springless rotating viscometer with 7'' colour display touch screen
- Unlimited rotational speeds between 0.3 and 1500 rpm (largest speed range !)
- Standard version torque : 0.05 to 30 mNm
- Intergrated temperature probe covering -50 C to 300 C
- Accuracy : +/- 1% of Full scale
- Repeatibility: +/- 0.2 %
- Dispaly shows: Viscosity, speed, torque, shear stress, time and temperature
- PC connections via RS232/UBS
- Printer connection via USB port
Methods compliance:
ASTM : D115 ; D789 ; D1076 ; D1084 ; D1337 ; D1338 ; D1417; D1439 ; D1824 ; D2196 ; D2243
; D2364 ; D2556 ; D3288 ; D3468 ; D3716 ; D3730 ; D3794 ; D4016 ; D4143 ; D4878 ; D4889 ; D5324 ; D5400 ; D6279 ; D6577 ; D7394 ; D8020 ; E2975 ; F1607 ; BS 5350 ; DIN 2555 ; 3219 ; 52007-1 ; 53019-1; 54453 ; EN 302-7 ; 2555 ; 3219 ; 10301 ; 12092 ; 12802 ; 15425 ; 15564 ;
IOCCC 2000 ; ISO 1652 ; 2555 ; 2884-2 ; 3219; 10364-12.
Optional items:
- Carrying case
- RheoTex software
- Rack stand (enables single hand vertical movement of viscometer)
Compatible accessories (must be purchased separately):
- MS DIN, MS ASTM, MS BV, MS VANE, MS R, MS HT, MS ULV, MS SV, MS CP
Compatible temperature control units (must be purchased separately) :
- EVA DIN, EVA MS-R, EVA LR-BV, RT1, RT3, CP1

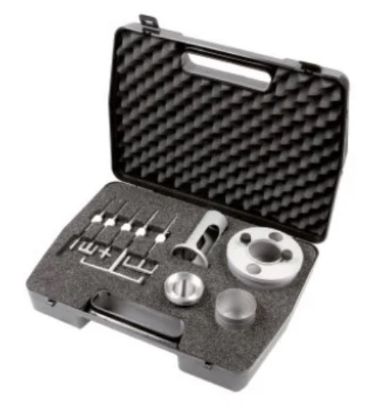

The MS-R1- 5 in a case includes the following parts:
a. Spindles 1 thru 5
b. ST-R centring tool
c. 1 of each MB-2 and MB-3 Cups
