Refractometer analog U 30-35; EG -50-0; PG -50-0; CW -40-0; BF 1,1-1,4_1317386

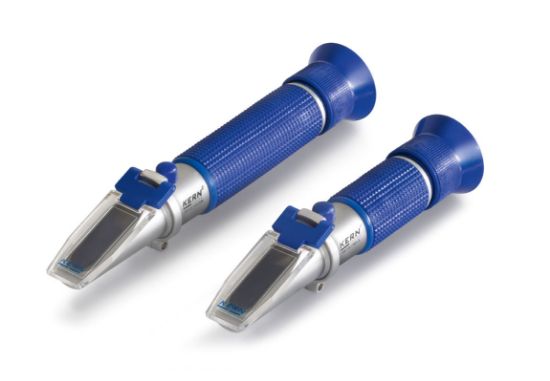

Representative image only

Refractometer analog U 30-35; EG -50-0; PG -50-0; CW -40-0; BF 1,1-1,4

$251.90

The price is inclusive of GST
  • The models in the KERN ORA-U range are universal, maintenance-free analogue manual refractometers
  • The practical and robust design means that it can be used simply, efficiently and on a permanent basis, day in day out
  • The manual effort to convert the value is avoided by the use of several selectable scales and thereby eliminates user error
  • These scales have been specially developed, calculated precisely and checked. Another key feature is the very thin, clear lines
  • The optical system and the prism cover are made from special materials, which enable you to measure with low tolerances
  • All models are fitted with an eyepiece which can be adjusted easily and smoothly to different visual capacities
  • The models which are marked "ATC" have automatic temperature compensation, which makes it possible to obtain precise measurements at different environmental temperatures
  • Included in the scope of supply:
    • - Storage box
    • - Calibration solution
    • - Pipette
    • - Screwdriver
    • - Cleaning cloth
  • Further accessories are available as options



Area of application: Industry/Motor vehicle industry


The following models are particularly suitable for measuring and determining AdBlue, glycol concentration (ethylene: EG and propylene: PG), of battery fluid (BF), urea and measuring the freezing point of screen wash (CW). Furthermore, these models are suitable for measuring temperature-exchange systems.

Main areas of application:

  • Motor vehicle industry
  • Chemical industry
  • Solar industry (checking frost protection)
  • Geothermal power (measuring brine concentration with geothermal energy)
  • Forestry management
