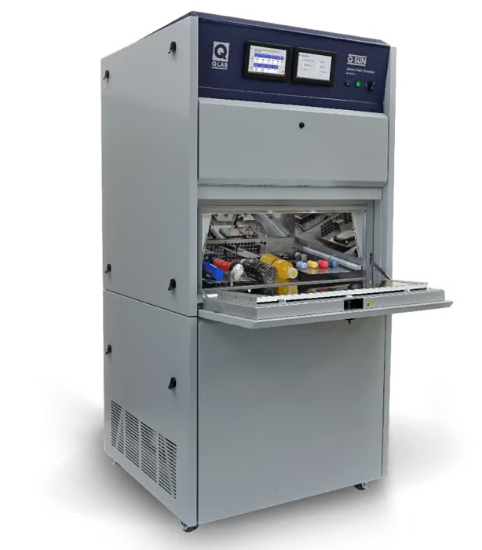

The Q-Lab Q-SUN Xe-3-HDSCE Flat-Array Xenon Arc Test Chamber with RH, Dual Spray and Chiller is an advanced full-size xenon arc weathering tester for laboratories that need controlled full-spectrum light, temperature, relative humidity, second-liquid spray capability and lower chamber air temperature operation. This extended Xe-3 Model E configuration combines humidity control, dual spray and a separate chiller in Q-Lab’s flat-array Xe-3 platform. It is designed for technical buyers testing coatings, plastics, automotive materials, textiles, packaging, sealants, printed materials and selected product components where degradation is driven by light, heat, humidity, spray chemistry and temperature-sensitive exposure conditions. For laboratories comparing Q-SUN Xe-3 configurations, the Xe-3-HDSCE adds chiller capability to the humidity and dual spray platform, while excluding the back spray function used on HDSBSE and HDSBSCE models.
Test Standards Supported
The Q-SUN Xe-3-HDSCE supports xenon arc weathering and lightfastness methods where the selected cycle requires irradiance, chamber air temperature, black panel or insulated black panel temperature, relative humidity, spray capability and lower chamber air temperature operation. Exact suitability depends on the selected optical filter, irradiance control point, temperature setpoint, RH setpoint, spray cycle and test fluid requirements.
- ASTM G151, exposure of non-metallic materials in accelerated test devices using laboratory light sources.
- ASTM G155, xenon arc exposure of non-metallic materials.
- ISO 4892-2, plastics exposed to laboratory xenon arc light sources.
- ISO 16474-2, paints and varnishes exposed to laboratory xenon arc light sources.
- ASTM D2565, xenon arc exposure of plastics intended for outdoor applications.
- ASTM D4459, xenon arc exposure of plastics for indoor applications.
- ASTM D6695, xenon arc exposure of paints and related coatings.
- ASTM D7869, automotive coating exposure, subject to cycle and spray requirements.
- SAE J2412, accelerated exposure of automotive interior trim components.
- SAE J2527, accelerated exposure of automotive exterior materials, subject to cycle requirements.
- AATCC TM16 and AATCC TM169, textile lightfastness and weathering methods.
- ISO 105-B02, ISO 105-B04, ISO 105-B06 and ISO 105-B10, subject to cycle requirements.
Configuration Notes
- This Xe-3-HDSCE model includes relative humidity control.
- This model includes dual spray for a second spray liquid in addition to standard water spray.
- This model includes a separate chiller for lower chamber air temperature operation.
- This model does not include back spray. For dual spray plus back spray, review Xe-3-HDSBSE.
- This model does not include front/back spray. For dual spray, back spray and chiller, review Xe-3-HDSBSCE.
- The dual spray system includes a separate reservoir and pump enclosure requiring additional floor space.
Key Features
- Full-size Xe-3 flat-array chamber for high-capacity xenon arc weathering and lightfastness testing.
- Three 1800 W full-spectrum ozone-free xenon arc lamps for realistic sunlight simulation.
- Relative humidity control from 20-95% for humidity-influenced material degradation cycles.
- Dual spray system for a second liquid such as acid rain or soap solution.
- Separate chiller for lower chamber air temperature operation.
- Large 45 x 72 cm flat specimen tray for panels, larger samples and selected product parts.
- SOLAR EYE irradiance control with selectable 340 nm, 420 nm or TUV control points.
- Model E feature set with dual touchscreen displays and improved irradiance/lamp efficiency.
- AUTOCAL UC20 compatibility for irradiance control and black panel thermometer calibration.
- Standard Ethernet datalogging plus USB data transfer and software update support.
Performance Specifications
- Chamber type: full-size flat-array xenon arc weathering test chamber.
- Light source: 3 x 1800 W full-spectrum ozone-free xenon arc lamps.
- Specimen capacity: 55 specimens at 51 x 102 mm.
- Specimen area: 45 x 72 cm, depth x width.
- Specimen orientation: 10° measured from horizontal.
- Maximum evenly distributed specimen weight on tray: 23 kg.
- Black panel temperature range with chiller: 35 to 110 °C in light, 30 to 90 °C with IR filter and 15 to 50 °C in dark.
- Insulated black panel range with chiller: 36 to 120 °C in light, 31 to 100 °C with IR filter and 15 to 50 °C in dark.
- Chamber air temperature range with chiller: 25 to 65 °C in light and 15 to 50 °C in dark.
- Relative humidity range: 20 to 95%.
- Front spray water consumption: 0.16 L/min with spray on.
- Humidifier water consumption: 44 L/day, with actual use dependent on test and laboratory conditions.
- External dimensions: 91 x 178 x 99 cm for the main Xe-3 chamber.
- Chiller dimensions: 78 x 94 x 94 cm.
- Weight: 190 to 233 kg for the main chamber, depending on configuration.
- Chiller weight: 85 kg.
- Electrical requirements: 208 V or 230 V, 3-phase at 44 A, 50/60 Hz; 400 V, 3-phase at 26 A.
Specimen Capacity and Configuration
The Q-SUN Xe-3-HDSCE uses a large flat-array specimen tray with a 45 x 72 cm exposure area and capacity for 55 specimens at 51 x 102 mm. The near-horizontal 10° specimen orientation is useful for testing flat panels, coated coupons, plastics, textiles, packaging samples and selected three-dimensional parts. Q-Lab notes that Xe-1 and Xe-3 specimen capacities are listed without specimen holders, so holder selection should be confirmed during configuration.
The key configuration advantage of Xe-3-HDSCE is its combination of dual spray and chiller capability. Dual spray supports a second spray liquid, while the chiller supports lower chamber air temperature operation. This makes the model useful for advanced weathering programmes where standard water spray is not sufficient and where lower temperature control is required for temperature-sensitive materials or specific customer methods.
Operating Specifications
The Xe-3-HDSCE is an S model, so it requires high-purity water. Q-Lab lists the water requirement for all S or W models as inlet pressure of 2.1 to 6.2 bar, resistivity greater than 5 MΩ.cm, conductivity less than 0.2 μS/cm, total dissolved solids less than 0.1 ppm and colloidal silica less than 0.1 ppm. Q-Lab also recommends pH 6 to 8 and use of a reverse osmosis/deionisation system for best performance.
For facility planning, the main Xe-3 chamber external dimensions are 91 x 178 x 99 cm, and the chiller dimensions are 78 x 94 x 94 cm. The dual spray system includes a separate reservoir and pump enclosure, so additional floor space should be allowed for the full installation. Q-Lab notes that the rear Xe-3 vent duct can be removed to reduce chamber depth from 99 cm to 88 cm for movement through small doors.
The electrical requirement for Xe-3-HDSCE is 208 V or 230 V, 3-phase at 44 A, or 400 V, 3-phase at 26 A, with voltage tolerance of plus or minus 10% and 50/60 Hz operation. The recommended laboratory ambient condition is 23 ± 5 °C and 50 ± 25% relative humidity. Q-Lab states that operation outside these conditions can cause temperature, humidity or other faults, and the chamber should not be operated above 36 °C ambient or above 80% RH.
Why Choose the Q-Lab Q-SUN Xe-3-HDSCE?
The Q-Lab Q-SUN Xe-3-HDSCE is suited to laboratories that need a full-size Xe-3 flat-array xenon arc tester with RH control, dual spray and lower temperature capability. Compared with Xe-3-HDSE, it adds chiller-supported operation. Compared with Xe-3-HSCE, it adds dual spray for a second liquid. Compared with Xe-3-HDSBSE, it excludes back spray, so it is best aligned where dual spray and chiller are needed but front/back specimen wetting is not required.
For technical buyers, the main commercial value is advanced exposure flexibility. The Xe-3-HDSCE combines three air-cooled xenon lamps, SOLAR EYE irradiance control, humidity control, BP or IBP plus CAT control, dual spray, chiller operation, AUTOCAL calibration and a large flat specimen tray. This supports repeatable, documented accelerated weathering and lightfastness testing for R and D, formulation comparison, supplier qualification, quality control and customer specification work.
John Morris Group supplies Q-Lab capital test equipment across Australia, New Zealand, Sri Lanka and the Pacific Islands, supporting customers with model selection, facility planning, calibration workflow, water quality requirements, electrical services, chiller installation considerations and after-sales support. Contact John Morris Group for a quote on the Q-Lab Q-SUN Xe-3-HDSCE Flat-Array Xenon Arc Test Chamber with RH, Dual Spray and Chiller, including confirmation of the correct optical filters, specimen holders, spray-fluid requirements, water purification and installation needs for your test programme.
