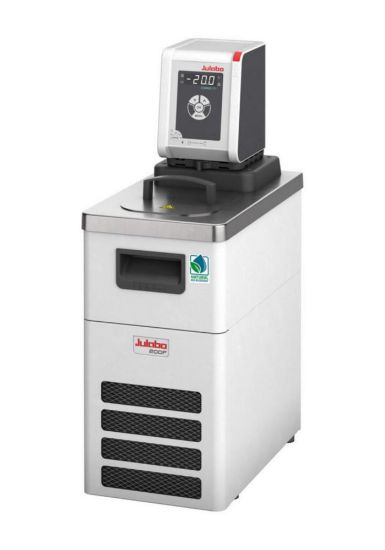

Refrigerated circulator CORIO™ CP-200FRefrigerated circulators with enhanced, flexible pump performance and a working temperature range up to 200 °C. Temperature control is possible either in the internal bath or in a connected external app_1932462
Representative image only

Refrigerated circulator CORIO™ CP-200FRefrigerated circulators with enhanced, flexible pump performance and a working temperature range up to 200 °C. Temperature control is possible either in the internal bath or in a connected external app

Bath opening mm130 x 150
Bath tank depth mm150
Capacity of the bath litres3 ... 4
Cooling capacity kW at 20/0/-20°C0.2 / 0.15 / 0.02
Delivery pressure, max. bar0.7
DescriptionNatural refrigerant R290
Ext. depth390 mm
Ext. height650 mm
Ext. width230 mm
External dimensions (WxDxH)230 x 390 x 650 mm
Flow rate L / min.8 ... 27
Heating capacity2 kW
IP codeIP 21
Plug typeEU
Power Supply230 V, 50 Hz
Temp. range °C-20 ... 200
Temp. stability±0,03 °C
TypeCP-200F
Type of auxiliary energymains connection
