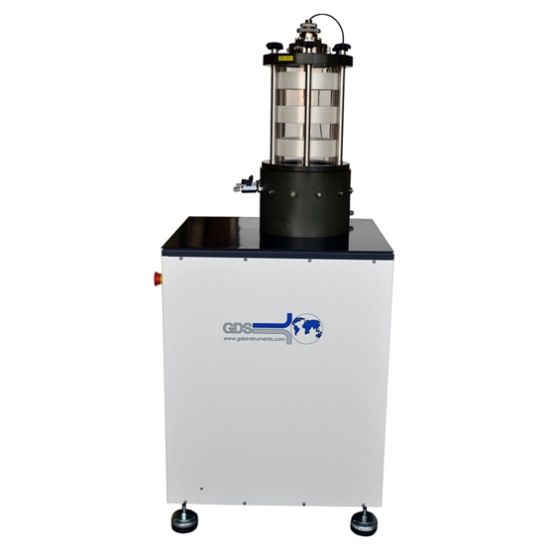

The GDS Advanced Dynamic Triaxial Testing System is a premium, high-performance apparatus designed for advanced geotechnical research. This no-compromise system integrates a triaxial cell with a dynamic actuator, enabling the application of load, deformation, and stresses up to 5Hz. The screw-driven cell operates from an integral base unit that houses the motor drive, delivering axial force and deformation through the cell base. For advanced testing needs, the system can be coupled with a dynamic cell pressure actuator to apply dynamic cell pressures up to the system's fundamental frequency of 5Hz.
Product Features
- High-end dynamic triaxial testing system from GDS
- Dynamic actuator applies load, deformation, and stress up to 5Hz
- Screw-driven triaxial cell with integrated motor drive in base
- Axial force and deformation delivered via cell base
- Optional dynamic cell pressure actuator for full dynamic capability
Benefits
- Enables highly accurate dynamic soil testing at up to 5Hz
- Designed for advanced research and high-spec laboratory environments
- Expandable system architecture for future testing requirements
Why Choose GDS Advanced Dynamic Triaxial Testing System?
Engineered by GDS for geotechnical laboratories demanding precision and versatility, this system delivers comprehensive dynamic testing capabilities in a single platform. Its robust architecture ensures long-term reliability, making it the ideal solution for researchers exploring complex soil behavior under cyclic loading conditions.
