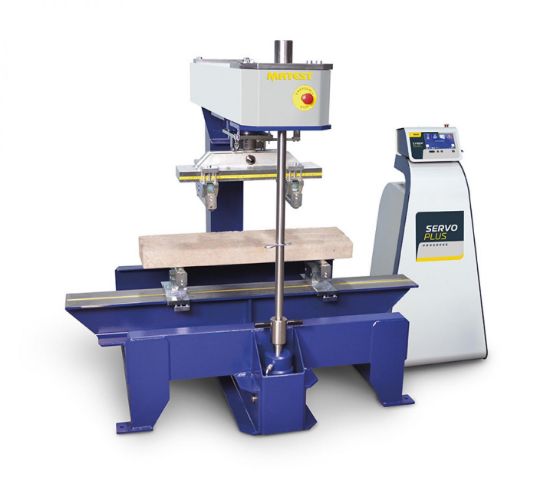

Multipurpose high flexibility testing machine
Servo-Plus progress 8-channel servo controlled system for a fully automatic execution of the test (mod. C104N).
Load is measured by a high accuracy electric strain cell, eliminating the piston’s weight and friction.
C-shaped open frame for an easy and fast positioning of the specimen between the rollers.
The frame is closed by a hydraulic vertical rod, granting high rigidity.
Ram travel: 110 mm
Maximum vertical daylight between upper/lower rollers: 263 mm
Horizontal clearance (between uprights): 1030 mm
Possibility to easily place one upper roller in the centre for centrepoint loading.
Graduated scales are foreseen for easy roller adjustment.
Simple action piston with counterweights to minimize frictions.
Calibration accuracy: class 1
Power supply: 230V 1ph 50Hz 750W
Frame dimensions: 1700 x 1470 x 1558 mm
Frame weight: 800 kg + 100 kg approx. of control console
