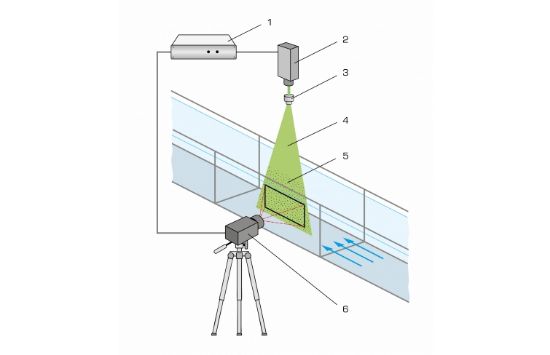

The GUNT HM 162.81 PIV-System (Particle Image Velocimetry) is used to record two-dimensional velocity fields in the HM 162 experimental flume. The system includes light sectioning optics, camera, and synchronizer, allowing precise flow measurements and immediate visualization of results.
Product Features
- Complete PIV system with LED light source, camera, and synchronizer
- Two-dimensional flow measurement capability
- LED light source provides safe illumination without laser safety devices
- Lens expands light into a light section for flow observation
- Continuous light for observation; pulsed light for velocity field evaluation
- Camera captures particle images synchronized with light source
- Notebook with pre-installed evaluation software included
- Optional HM 162.82 instrument carrier for above-flume light mounting
- Optional HM 162.83 glass cut-out for below-flume light positioning
Benefits
- Enables detailed visualization and measurement of flow velocity fields
- Safe LED illumination avoids laser hazards
- Immediate software-based evaluation of experimental results
- Flexible setup with optional instrument carrier or glass cut-out
- Supports research, teaching, and advanced hydraulic experiments
Why Choose GUNT HM 162.81 PIV-System?
The HM 162.81 PIV-System provides precise two-dimensional flow velocity measurements in the HM 162 flume, combining safe LED illumination with immediate visualization and evaluation capabilities.
