PressureMAT PLUS monitor, transmitter, alarm for 2 pressure sensors, 1 flow meter input & 1 configurable 4-20mA analog input [CP part 19406-41]

• The single-use solution to monitor process pressure

• Ideal for applications such as tangential flow filtration, cross flow filtration, depth filtration, bioreactor monitoring, and chromatography
• Data output capability to a PC or control system
• User-configurable min/max alarm set points
• Monitor with 2 inputs, 1, flow
• Reads pressure in psi

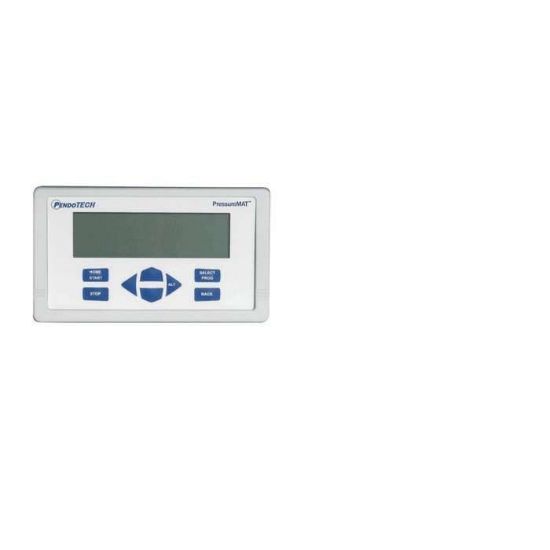

The PressureMAT combines a pressure monitor, datalogger, alarm, and transmitter in one simple control box. Designed for use with single-use in-line pressure sensors, the PressureMAT is available in models that accept up to 4 pressure sensor inputs. Each channel takes pressure readings once per second. Process pressure is displayed on the LCD. System is easily calibrated to zero through a single button. The PressureMAT may also transmit output via 4-20 mA signal or can provide RS-232 data transfer for use in common PC applications, such as Excel, through WinWedge or Hyper Terminal software.
