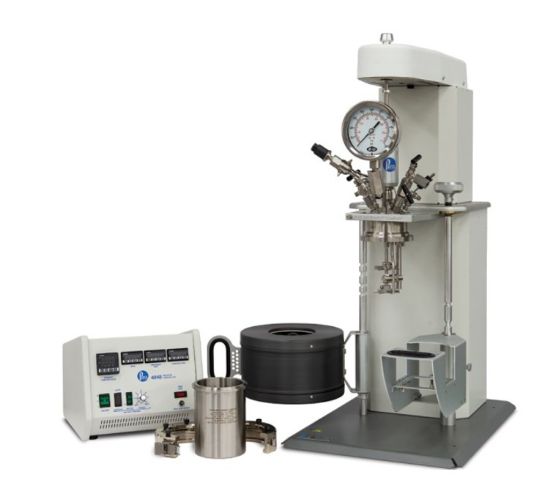

Parr 4523 1L Fixed Head Bench Top Reactor constructed from Hastelloy C-276 is designed for high pressure and corrosive laboratory applications. This reactor offers precise temperature control, enhanced safety features, and ASME certification for reliable performance.
Product Features
- 1000 ml Fixed head bench top reactor made of Hastelloy C-276
- Vessel MAWP Rating: 1900 PSI [131 bar] at up to 200°C
- Head, cylinder, magnetic drive, and internal wetted parts constructed of Hastelloy C-276
- Vapor-containing external valves and fittings constructed of stainless steel
- PTFE Flat Gasket stable up to 350°C
- Heavy Duty Magnetic Drive made of Hastelloy C-276
- Pressure gauge 0-2000 psi
- Gas release valve
- Double valve assembly with inlet valve and sampling valve over dip tube
- Safety rupture disc
- Thermocouple, Type J
- Bench top mantle heater, 230V
- Variable speed motor, 1/4 hp
- 4848 Reactor Controller with PID temperature control with ramp and soak programming, manual speed adjustment knob 0-600 rpm, 230V electrical
- Serpentine Cooling Coil made of Hastelloy C-276
- ASME Certification
- 10L expansion recovery chamber rated to 150 PSI
- Stainless steel ball valve for rapid decompression with PEEK valve seat (not for use above 200°C)
- Pressure relief valve on the expansion recovery vessel
Benefits
- Superior corrosion resistance due to Hastelloy C-276 construction
- High pressure and temperature ratings for demanding applications
- Precise temperature control with PID controller and ramp/soak programming
- Enhanced safety features including rupture disc and pressure relief valve
- Efficient cooling via serpentine coil to maintain optimal reaction conditions
- Robust magnetic drive for reliable stirring performance
- Convenient expansion chamber with rapid decompression valve
- ASME certification ensures compliance with industry safety standards
Why Choose Parr 4523 Reactor?
- Trusted brand known for durable and reliable laboratory reactors
- Ideal for chemical processes requiring high corrosion resistance
- Customizable controls and accessories for precise process management
- Comprehensive safety features designed for high-pressure applications
- Excellent support and spare parts availability
