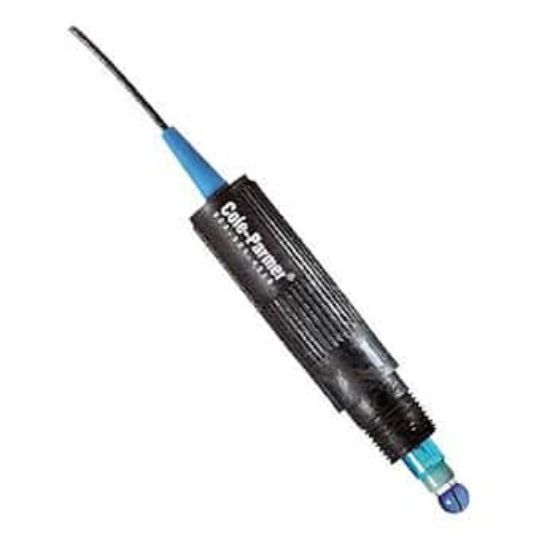

The Oakton In-Line pH Electrode Single Junction without ATC features a one-piece electrode and housing designed for convenient installation. Built with chemical-resistant PVDF housing and available with a 10 ft cable and BNC connector, this electrode supports reliable pH measurement in demanding environments.
Product Features
- Integral, one-piece electrode and housing for installation convenience
- Available in single-junction or double-junction designs
- Options include BNC or stripped and tinned ends
- Operates from 32 to 212°F (0 to 100°C)
- Chemical-resistant PVDF housing with 1/2'' NPT(M) thread
- Housing measures 4'' length x 15/16'' diameter
- Electrode extends 1'' beyond housing
- Maximum pressure rating of 100 psi
- Measures pH range from 0 to 13
Note: 100 Ω RTD ATC elements are platinum and conform to DIN curve 43760. ATC connector is a miniature audio plug. Connector for the 1 kΩ RTD and the 3 kΩ Balco ATC elements is a spade lug. Connector for 100 kΩ thermistor ATC elements is a standard 1/4" phone plug.
Benefits
- Durable construction for long-term chemical resistance
- Flexible design with multiple junction and connector options
- Suitable for a wide temperature range and pressure conditions
- Easy installation with integrated housing and cable options
Why Choose the Oakton In-Line pH Electrode?
This electrode is ideal for precise pH measurement in industrial and laboratory applications, offering reliable performance and ease of installation with its robust PVDF housing and versatile connection options.
