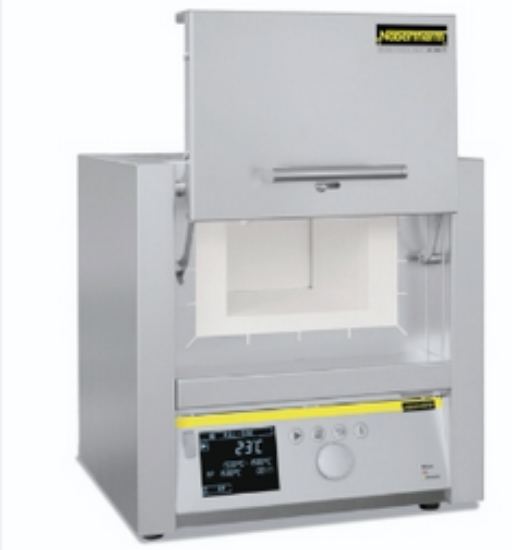

Nabertherm Muffle Furnaces LT Series, Max. 1100 °C, Lift Door, suitable for laboratory use from 1100 °C to 1400 °C, offering high stability and safety features.
Product Features
- For daily laboratory use. Models with flap door or lift door available, for temperatures from 1100 °C to 1400 °C
- Dual shell housing made of textured stainless steel sheets for low external temperatures and high stability
- Adjustable air inlet integrated in door
- Exhaust air outlet in rear wall of furnace
- Solid state relays provide low-noise operation
- Optionally available with flap door (L models) that can be used as work platform or with lift door (LT models) with hot surface facing away from the operator
- Available with the programmable controllers B 410 and C 450 with adjustable ramps and hold times (L 1/12 with R7 or 3216)
- All insulation materials used are classified as non-carcinogenic according to TRGS 905, Class 1 or 2
- Standard connection 220-240 V 1/N/PE 50/60 Hz
- 1100 °C and 1200 °C models: Ceramic heating plates with integrated heating wire, splash and exhaust protected, easy to replace; heating from two sides (three sides for 24 l and 40 l furnaces)
- 1300 °C and 1400 °C models: Heating elements on support tubes for free heat radiation, short heating times and long service life; heating from two sides
- Optional: Chimney, chimney with fan or catalytic converter; over-temperature limiter; protective gas connection; manual or automatic gas supply system; process control and documentation via VCD software package
- Max. temperature 1100 °C. Lift door with hot surface facing away from the operator
Benefits
- Reliable high-temperature performance for laboratory applications
- Lift door ensures safety with hot surface facing away from the operator
- Programmable controllers allow precise ramp and hold time management
- Dual-shell design keeps exterior cool while maintaining furnace stability
- Optional accessories enhance versatility and process control
Why Choose Nabertherm LT Series?
The Nabertherm LT Series offers a compact, high-performance muffle furnace range with lift door safety, programmable controllers, and optional accessories, ideal for precise laboratory heating tasks.
