Nabertherm Muffle Furnaces series LT 5/14 are designed for daily laboratory use, available with lift or flap doors, and provide precise heating up to 1400°C. The lift door ensures the hot surface faces away from the operator for safe handling during extended processes.
Product Features
- Maximum temperature: 1400°C (recommended 1300°C for longer processes)
- Dual shell housing made of textured stainless steel sheets for low external temperatures and high stability
- Adjustable air inlet integrated in door
- Exhaust air outlet in rear wall of furnace
- Solid state relays provide low-noise operation

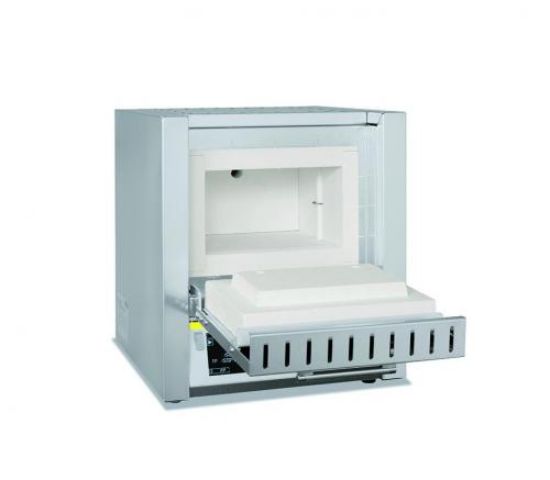

- Optionally available with flap door (L models) usable as work platform or lift door (LT models) with hot surface facing away from operator
- Programmable controllers: B 410 and C 450 with adjustable ramps and hold times (L 1/12 with R7 or 3216)
- All insulation materials are non-carcinogenic according to TRGS 905, Class 1 or 2
- Standard connection: 220-240 V 1/N/PE 50/60 Hz
- 1100°C and 1200°C models: Ceramic heating plates with integrated heating wire, splash and exhaust protected, easy to replace; heating from two sides (three sides for 24L and 40L volumes)
- 1300°C and 1400°C models: Heating elements on support tubes for free heat radiation, short heating times, and long service life; heating from two sides
- Optional chimney, chimney with fan, or catalytic converter
- Optional over-temperature limiter with adjustable cutout temperature for thermal protection class 2 (EN 60519-2)
- Optional protective gas connection for non-flammable protective or reaction gases (not available with chimney, fan, or catalytic converter)
- Optional manual or automatic gas supply system
- Optional process control and documentation via VCD software package
Benefits
- Safe operation with lift door and low external temperatures
- Reliable, precise heating for laboratory processes up to 1400°C
- Durable construction with low-noise operation
- Flexible optional features for enhanced process control and safety
Why Choose Nabertherm Muffle Furnaces?
Nabertherm Muffle Furnaces provide safe, efficient, and precise heating for laboratory applications, combining durable design with advanced control and optional process monitoring features.
