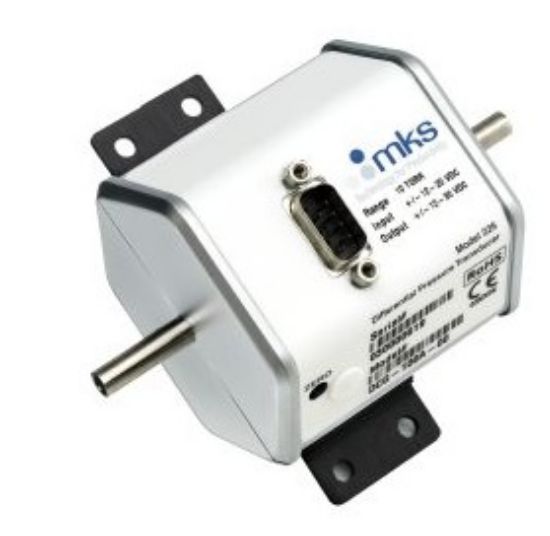

The MKS 226B Differential Transducer, 100 kPa, Terminal (part number 226B12KBGBGFU3T1) is a Baratron differential capacitance manometer for vacuum and pressure measurement applications. This 226B configuration provides a 100 kPa differential range, 3/16 in OD reference and measurement side tubes, 0.50% of full-scale accuracy, unidirectional 0 to 5 VDC analogue output, ±15 VDC input and a 5-post terminal block adaptor.
Key Features
- Brand: MKS
- Manufacturer Number: 226B12KBGBGFU3T1
- JMG Part Number: 226B12KBGBGFU3T1
- Product Type: Differential Baratron capacitance manometer
- Model: 226B
- Measurement Type: Differential pressure
- Full Scale Range: 100 kPa
- Accuracy: 0.50% of full scale
- Resolution: 0.01% of full scale
- Analogue Output: 0 to 5 VDC into >10 kΩ load
- Calibration: Unidirectional
- Electrical Connector: Terminal block adaptor, 5-post
- Power Requirements: ±15 VDC ±5% at 25 mA maximum
- Measurement Side Fitting: 3/16 in OD tube
- Reference Side Fitting: 3/16 in OD tube
- Mounting Bracket: Standard mounting bracket
- Operating Temperature Range: 0 to 50 °C
- Zero Temperature Coefficient: 0.1% full scale/°C for standard accuracy specification
- Span Temperature Coefficient: 0.04% of reading/°C
- Sensor Internal Volume: Measurement side 1.4 cm³, reference side 9.0 cm³
- Maximum Overpressure: Measurement side 120% of full scale or 20 psi / 140 kPa, whichever is higher; reference side 120% of full scale
- Maximum Line Pressure: 40 psig / 275 kPa
- Materials Exposed To Process Gases: Measurement side Inconel; reference side Inconel, ceramic, palladium, stainless steel and glass
- Compliance: CE and SEMI S2-0706
Benefits
- Measures differential pressure directly for vacuum, flow, filter and process control applications.
- Supports unidirectional pressure measurement with a 0 to 5 VDC analogue output for control and data systems.
- Provides repeatable differential pressure measurement with 0.50% full-scale accuracy.
- Supports corrosive or difficult process gases with Inconel measurement-side wetted materials.
- Reduces gas-specific correction requirements because Baratron capacitance measurement is not affected by gas composition.
- Provides robust installation in industrial environments through RF/EM interference-resistant housing design.
Why Choose the MKS 226B Differential Transducer, 100 kPa, Terminal (226B12KBGBGFU3T1)?
The MKS 226B Differential Transducer, 100 kPa, Terminal provides reliable differential pressure measurement with 3/16 in OD tube fittings, unidirectional 0 to 5 VDC output and terminal block connectivity for process and vacuum systems. John Morris Group supplies this MKS transducer for facilities requiring verified product identification, dependable pressure measurement and procurement support.
