The Memmert Universal Oven UN110mplus offers reliable natural convection heating with precise temperature control and a large 108-liter capacity. Designed for demanding laboratory and industrial environments, this oven features advanced TwinDISPLAY technology for easy operation, high-quality stainless steel construction, and robust safety systems. Perfect for applications requiring uniform heating from 20 °C to 300 °C, it combines efficiency, versatility, and user-friendly programmability in a compact footprint.
Product Features
- Natural convection heating with a 108-liter chamber volume
- TwinDISPLAY digital PID microprocessor control with two high-definition TFT colour displays
- Wide temperature range: 20 °C to 300 °C with high setting accuracy
- Fully insulated stainless steel door with 2-point locking

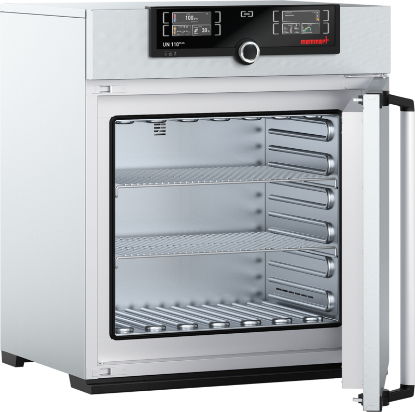

- Robust stainless steel interior with deep-drawn ribbing and electropolished grids
- Supports up to 5 internal grids with a maximum chamber load of 175 kg
- Advanced calibration options and adaptive heating distribution via HeatBALANCE
- Multiple language settings for international usability
Temperature
- Working range: at least 5 °C above ambient to 300 °C
- Setting accuracy: 0.1 °C up to 99.9 °C; 0.5 °C from 100 °C
- 2 Pt100 sensors DIN Class A for mutual monitoring and error handling
- Functions: SetpointWAIT to delay process time until target temperature reached
- Three freely selectable calibration points
Control Technology
- ControlCOCKPIT system with TwinDISPLAY for adaptive, multifunctional control
- Digital backwards timer adjustable from 1 minute to 99 days
- Adjustable parameters: temperature (°C/°F), air flap position, program time, time zones, daylight savings
- AtmoCONTROL software via USB/Ethernet for program management
Ventilation
- Natural convection with electronically adjustable air flap
- Fresh air admixture with pre-heated air to maintain uniform temperature
- Vent connection with restrictor flap for controlled airflow
Communication
- Program storage during power failure for data integrity
- USB port and Ethernet interface for programming and data transfer
Safety
- Mechanical temperature limiter (TB) switches off heating ~20 °C above nominal
- Overtemperature monitor (TWW) and adjustable limiter (TWB) selectable on display
- AutoSAFETY feature for automatic over- and undertemperature monitoring with alarm and automatic shutdown
- Integrated autodiagnostic system for fault analysis
- Visual and acoustic alarms
Standard Equipment
- Fully insulated stainless steel door with secure 2-point locking
- 2 electropolished stainless steel grids included
- Calibration certificate at +160 °C
Stainless Steel Interior
- Easy-to-clean stainless steel interior reinforced with deep-drawn ribbing
- Large-area, protected heating elements integrated on four sides
Textured Stainless Steel Casing
- Scratch-resistant textured stainless steel housing
- Rear zinc-plated steel panel
Electrical Data
- 230 V, 50/60 Hz, approx. 2800 W electrical load
- 115 V, 50/60 Hz, approx. 1800 W electrical load
Ambient Conditions
- Installation clearances: 15 cm from rear wall, 20 cm ceiling clearance, 5 cm side clearance
- Max installation altitude: 2000 m above sea level
- Operating temperature: +5 °C to +40 °C
- Max relative humidity: 80%, non-condensing
- Overvoltage category II, Pollution degree 2
Benefits
- Precise and uniform temperature control for reliable test results
- Robust safety features ensure operator and equipment protection
- User-friendly interface with multiple language options
- Energy efficient natural convection with fresh air admixture
- Durable stainless steel construction for longevity and easy cleaning
- Flexible programming and data management via ControlCOCKPIT and AtmoCONTROL
Why Choose the Memmert Universal Oven UN110mplus?
The Memmert UN110mplus universal oven is engineered for laboratories and industries requiring consistent, high-quality heating performance with advanced control and safety features. Its large 108 L chamber, flexible programming, and robust design ensure it meets diverse application needs. From quality control to research, this oven combines precision, durability, and ease of use, making it a dependable choice for modern lab environments.
