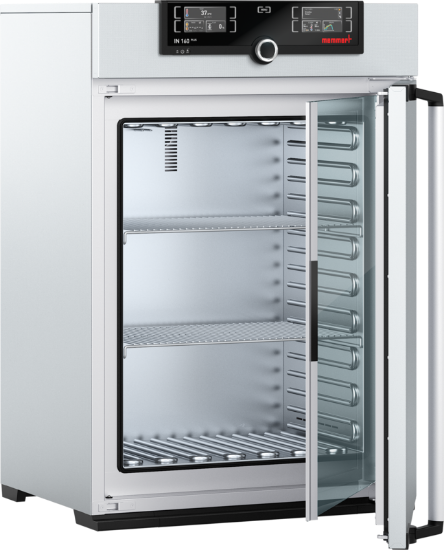

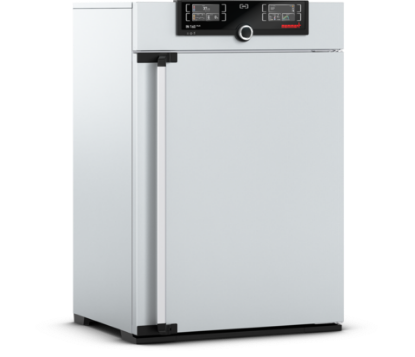

The Memmert Incubator IN160mplus features precise natural convection incubation with an advanced TwinDISPLAY control system, offering reliable temperature stability between 20 °C and 80 °C. With a 161-liter capacity and durable stainless steel interior, it is designed for demanding laboratory environments requiring consistent, safe, and efficient incubation.
Product Features
- Temperature setting range: +20 to +80 °C with 0.1 °C accuracy
- Working temperature range: at least 5 °C above ambient to 80 °C
- Two Pt100 temperature sensors (DIN Class A) with mutual monitoring and automatic backup
Temperature
- Setting accuracy: 0.1 °C
- Calibration: Three freely selectable temperature points
- Fixed sterilisation programme: 4 hours at 160 °C (chamber only)
- Function HeatBALANCE: adaptive heating distribution between upper and lower circuits (-50% to +50%)
- Function SetpointWAIT: process time starts only after reaching set temperature
Control Technology
- ControlCOCKPIT with TwinDISPLAY: two high-definition TFT colour displays
- Multilingual interface (German, English, Spanish, French, Polish, Czech, Hungarian)
- Digital backwards timer: adjustable from 1 minute to 99 days
- Adjustable parameters: temperature (°C or °F), air flap position, program time, time zones, daylight saving time
Ventilation
- Natural convection airflow
- Pre-heated fresh air admixture via electronically adjustable air flap
- Vent connection with restrictor flap
Communication
- Program memory saved in case of power failure
- AtmoCONTROL software for programming, managing, and transferring programs via USB or Ethernet
Safety
- Mechanical temperature limiter TB (protection class 1) switches off heating approx. 20 °C above nominal temperature
- Overtemperature monitor TWW (protection class 3.1) or adjustable limiter TWB (class 2), selectable on display
- AutoSAFETY: integrated over- and undertemperature monitor with alarms and automatic heating shutdown on fault
- Autodiagnostic fault analysis system
- Visual and acoustic alarms
Standard Equipment
- Fully insulated stainless steel door with 2-point compression lock
- Inner glass door
- Two electropolished stainless steel grids
- Works calibration certificate included for +37 °C
Stainless Steel Interior
- Easy-to-clean stainless steel interior reinforced with deep-drawn ribbing
- Large-area heating integrated and protected on four sides
- Volume: 161 liters
- Internal dimensions (W x H x D): 560 x 720 x 400 mm
- Max number of internals: 8
- Max chamber load: 210 kg, max load per internal: 20 kg
Textured Stainless Steel Casing

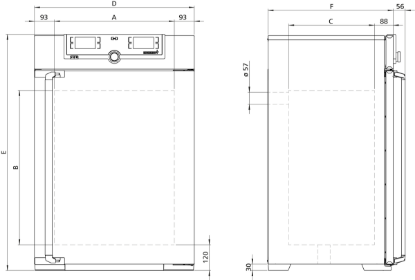

- External dimensions (W x H x D): 745 x 1104 x 584 mm (including 56 mm door handle)
- Rear zinc-plated steel housing
Electrical Data
- 230 V, 50/60 Hz, approx. 1600 W power consumption
- 115 V, 50/60 Hz, approx. 900 W power consumption
Ambient Conditions
- Minimum clearances: 15 cm from rear wall, 20 cm from ceiling, 5 cm from side walls or nearby appliances
- Maximum installation altitude: 2,000 m above sea level
- Ambient temperature range: +5 °C to +40 °C
- Maximum relative humidity: 80%, non-condensing
- Overvoltage category: II
- Pollution degree: 2
Benefits
- Precise and stable temperature control with dual sensor monitoring for optimal incubation conditions.
- Adaptive heating distribution ensures even temperature and energy-efficient operation.
- Robust stainless steel construction with easy-to-clean surfaces for long-lasting durability and hygiene.
- Comprehensive safety features protect samples and equipment from temperature faults and overheating.
- User-friendly TwinDISPLAY and multilingual interface make operation straightforward for global labs.
- Flexible programming options and data management with AtmoCONTROL software enhance reproducibility.
- Compact design with sufficient capacity supports a wide range of laboratory applications.
Why Choose the Memmert Incubator IN160mplus?
The Memmert IN160mplus incubator is engineered for laboratories seeking precise, safe, and energy-efficient natural convection incubation. With its advanced TwinDISPLAY control, robust stainless steel interior, and comprehensive safety systems, it delivers consistent temperature stability and ease of use. Perfectly suited for biological, pharmaceutical, and chemical incubations, it guarantees reliability and performance in any modern lab environment.
