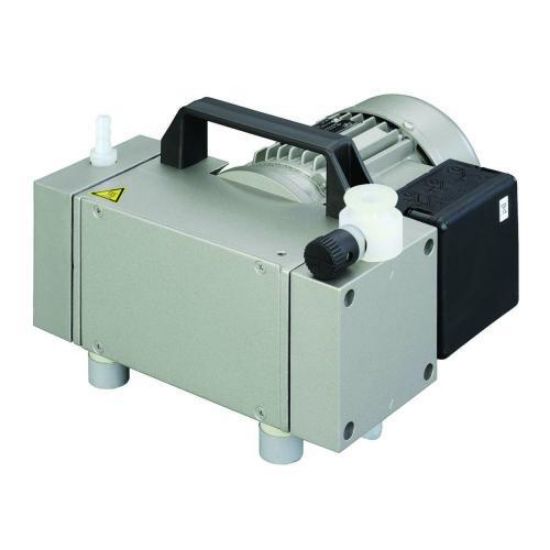

Membrane pump MPC 301 Z without mains cable,chemically, 230/400 V, 50/60 HZ, CEE
$3,785.10
The two-stage pump is designed for pumping and compressing gases and vapours and generate vacuum e.g. for rotary evaporators, vacuum ovens and gel dryers. Their electrical conductivity prevents electrostatic charging and minimizes the risk of the gas mixture igniting inside the pump.
-For tubes with ID = 8 mm
-Chemically resistant
-Resistant to aggressive solvents and acid vapours
-Elastomer diaphragms with PTFE layer
-Pump and connection heads are carbon fibre reinforced
-Integrated motor protection switch
-Vibration isolating feet
Scope of delivery: 2-head chemical diaphragm pump, external power supply and device connection cable with plug (EU, UK).
Specification
Pump speed 50 / 60 Hz: 38.3 / 41.7 l/min
Final vacuum (abs.): < 8 mbar
Suction / pressure connection: Hose nozzle DN 8
Noise: < 44 dB(A)
Motor power: 180 W
Voltage / frequency: 230 V / 50/60 Hz
Dimensions (W x D x H): 265 x 230 x 170 mm
Weight: 11.2 kg
IP code: IP 54
