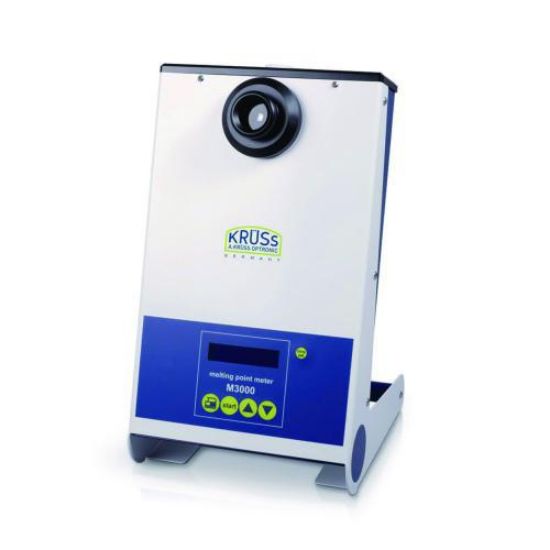

The A. Krüss Optronic Melting Point Measuring Unit M 3000 provides fast and easy examination of powdery substances with a melting point up to 360 °C. Triple capillary intake allows analysis of three samples within one measurement run. Preheating rate control and integrated fan cooling ensure rapid measurements across the entire temperature range.
Product Features
- Semi-automatic measurement with 10x magnification optics
- 3 capillary intakes for simultaneous sample analysis
- LCD display for clear data reading
- Monitoring of illuminated sample via lens
- Fast cooling through integrated fan
- Digital display of all important data
- Display available in German or English
- RS-232 interface for printer CBM910
- Easy-to-clean membrane keypad
Specifications
- Temperature range: 30 ... 360 °C
- Resolution: 0.1 °C
- Accuracy: ±0.3 °C (30 ... 200 °C), ±0.5 °C (200 ... 360 °C)
- Preheating rate: up to 300 °C ≈ 4.0 min, up to 360 °C ≈ 7.5 min
- Heating rate: 1 °C/min
- Capillary Ø: 1.4 mm
- Capillary intake: 3
- Dimensions (W x D x H): 210 x 230 x 360 mm
- Weight: 4.3 kg
- Power supply: 90 ... 264 V
- IP code: IP20
Scope of Supply
- Melting Point Meter M 3000
- Protective cover
- 100 capillaries
Benefits
- Fast and reliable melting point determination for powders
- Simultaneous analysis of three samples saves time
- Digital display ensures precise reading and monitoring
- Integrated fan cooling accelerates the measurement process
- RS-232 interface enables easy printer connection for documentation
- Compact and easy-to-clean design for convenient laboratory use
Why Choose A. Krüss Optronic Melting Point Measuring Unit M 3000 w/o Internal Printer with RS-232 Interface?
This unit provides precise, rapid, and reliable melting point determination for laboratory powder analysis, supporting multiple samples simultaneously with digital monitoring and optional printer connectivity.
