- Automatically recognizes current clamps and verifies proper connections
- Measure RMS voltage and current, phase-to-phase voltage, power parameters, voltage and current dips and swells, and phase angles
Determine IEC unbalance, IEC flicker, and energy parameters (KWH, KVARH, and KVAH)
Capture event waveform, total harmonic distortion, total demand distortion, frequency, harmonics, and inter-harmonics
Power current clamps through the meter to avoid additional connections
Transfer data through USB, Ethernet, USB stick, or SD card
Large 32-GB memory card included with meter and meter packages
Free software—no license or dongle required
CATIV-600 V safety rating
Use the MPQ1000 to view RMS data, waveforms, demand data, phase angles, harmonics, unbalance, and flicker in real-time over three phases—on the color VGA display. Phase angle stability measurements make finding tricky phasing problems easy. Timed waveform capture allows for PQ event and periodic waveforms recording simultaneously.
This analyzer works in both scope and DMM modes. Choose from the meter to configure your own system, or select a package for additional savings.

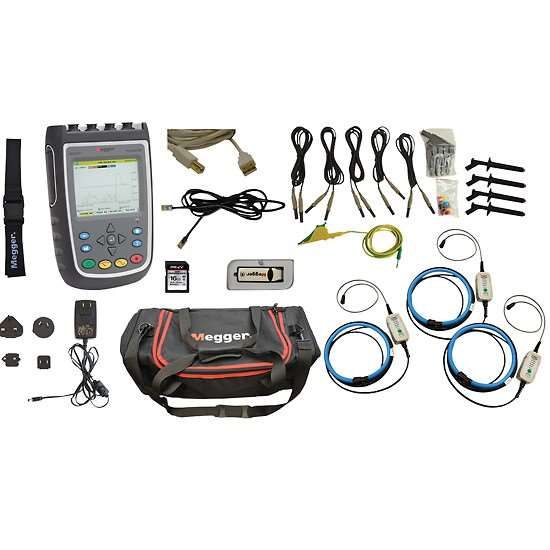

Whats Included:
five voltage leads, 32-GB SD card, USB cable, Ethernet cable, universal power adapter, and soft-sided storage bag. 20026-39, Silver Kit adds four voltage lead plunger clips, hanging strap, and three 18 cm dia. 6000 A flexible current clamps.
