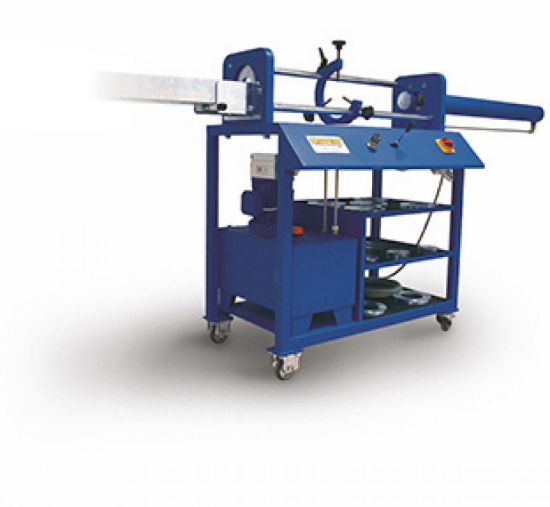

MATEST Universal Hydraulic Extruder is designed for smooth and rapid extrusion of soil samples from tubes, including thin-walled ones, with minimal disturbance. It extrudes samples from Ø 35 up to 150 mm (external diameter 160 mm) and features a maximum stroke of 900 mm.
Product Features
- Hydraulic piston with speed adjuster and stoppable at any position during stroke
- Max load capacity: 70 kN (7000 kg)
- Extrudes samples from 35 mm to 150 mm diameter (external diameter up to 160 mm)
- Adjustable receiving table holds extruded samples securely and can be lowered alongside the machine to save space
- Complete with adaptors (ring + tamper) for sample diameters 38.1 mm (1½”), 83 mm, and 100 mm
- Power supply: 220-240V, 1ph, 50Hz, 1300W
- Dimensions (working position): 2741 x 635 x 1200 mm
- Weight: approximately 160 kg
- Manufactured by MATEST ensuring durability and precision
Benefits
- Ensures minimal disturbance to soil samples during extrusion
- Adjustable speed and stoppage provide precise control
- Adaptors allow flexibility for different sample sizes
- Space-saving design with adjustable receiving table
- Robust and reliable for laboratory and field use
Why Choose MATEST Universal Hydraulic Extruder?
This extruder is ideal for geotechnical labs and professionals requiring efficient, gentle, and controlled extrusion of various soil sample sizes with reliable performance.
