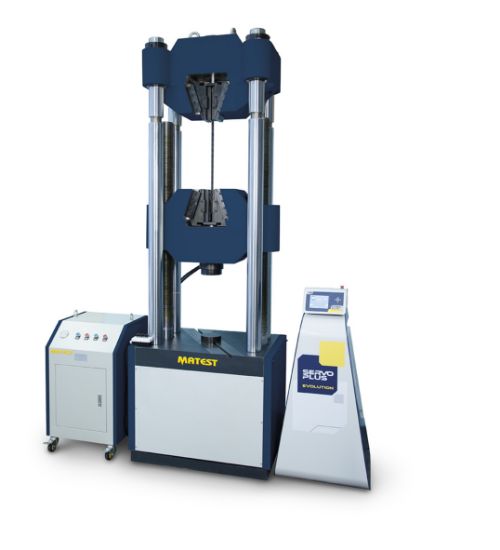

The MATEST Universal Automatic Tensile Testing Machine, with a load capacity of 1000 kN, is designed to meet the demands of industrial works, laboratories, and universities for quality control and research. Featuring a hydraulic servo-controlled system, dual workspaces, and high structural stiffness, this versatile machine enables precise testing of metallic round and flat rebars as well as compression and flexure strength on concrete.
Product Features
- Load capacity: 1000 kN suitable for testing steel rebars and concrete specimens
- Hydraulic servo-controlled system automatically regulates the load rate for accurate testing
- Four thick columns and two lead screws ensure high structural stiffness and stability
- Two workspaces: upper for tension tests; lower for compression, bending, and shearing
- High precision load cell, Class 1 according to ISO 376 standard, for reliable force measurement
- Hydraulic jaws provide strong and secure clamping of specimens
- Integrated displacement transducer measures piston stroke accurately
- Movable lower crosshead with button panel simplifies operation and specimen positioning
- Compression platens included for quick calibration and setup
- Load accuracy from 10% of the full scale: ± 1%
- Test speed: max 35 mm/min; min 0.5 mm/min
- Independent linearity of piston stroke displacement: ± 0.05%
- Max crosshead moving speed: 200 mm/min for efficient adjustments
- Piston stroke: 250 mm
- Horizontal clearance: 570 mm accommodating large specimens
- Net distance between grips (without piston stroke): 750 mm
- Columns diameter: 80 mm for added strength and durability
- Dimensions of grips for rounds and flats: 110×110 mm
- Net distance between compression platens (without piston stroke): 620 mm
- Dimensions of platens (included): 145×40 mm
- Load frame height: 2780 mm for tall specimen testing
- Frame width: 900 mm; depth: 650 mm ensuring a compact footprint
- Heavy-duty frame weight: approx. 2880 kg providing exceptional stability
- Power supply: 380V, 3 phase, 50 Hz; absorbed power: 3.5 kW
Benefits
- High-capacity 1000 kN load frame supports a wide range of tensile and compression tests
- Servo-controlled automation ensures precise, repeatable testing with minimal operator input
- Dual workspaces improve workflow efficiency by separating tension and compression zones
- Robust construction ensures long service life and consistent test performance
- Easy operation with hydraulic jaws, integrated controls, and movable crosshead
Why Choose the MATEST Universal Automatic Tensile Testing Machine, 1000 kN?
Engineered for laboratories, universities, and industrial quality control, the MATEST Universal Automatic Tensile Testing Machine offers unmatched versatility, accuracy, and ease of use. With a high-capacity frame, dual testing areas, and advanced servo control, it provides reliable and repeatable results for tension, compression, bending, and shear strength testing on steel and concrete specimens.
