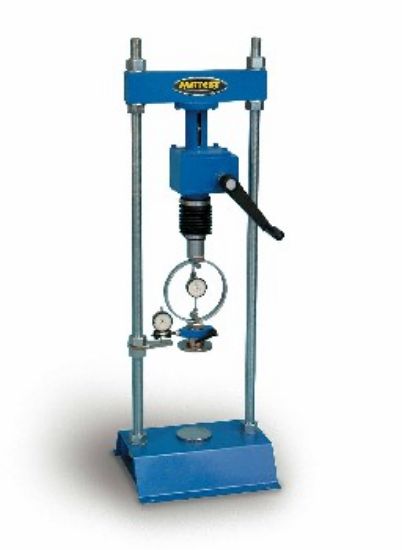

The MATEST Unconfined Compression Tester is a hand-operated instrument ideal for conducting unconfined compressive strength tests both in the laboratory and on site. With its precision proving ring and manual load application, it delivers reliable and repeatable results for soil and other cylindrical samples up to Ø80 mm x 200 mm height.
Product Features
- Hand-operated loading system driven by an easy-to-use handwheel
- Proving ring with 200 Kg capacity for accurate measurement of applied load
- Suitable for testing cylindrical samples up to 80 mm diameter and 200 mm height
- Compact and portable design, ideal for field and laboratory use
- Robust build quality ensures durability and long-term reliability
What's Included
- S221 Conversion frame
- S221-01 Mechanical jack 50 kN capacity (provided with its support)
- S370-02 Load ring 2 kN capacity
- S131-11 Upper and lower compression platens with accessories
- S376 Dial gauge 10 x 0.01 mm
- S212-03 Dial gauge holder
Benefits
- Reliable manual operation enables testing even in remote locations without power supply
- Accurate load measurement through high-quality proving ring
- Versatile design accommodates a wide range of sample sizes
- Compact and portable, allowing easy transport between field and lab
- Durable construction minimizes maintenance and ensures long service life
Why Choose the MATEST Unconfined Compression Tester?
Combining portability, precision, and simplicity, the MATEST Unconfined Compression Tester is a trusted choice for professionals performing soil strength analysis on site or in the lab. Its rugged design, high-accuracy proving ring, and complete kit of accessories deliver consistent and standard-compliant results every time.
