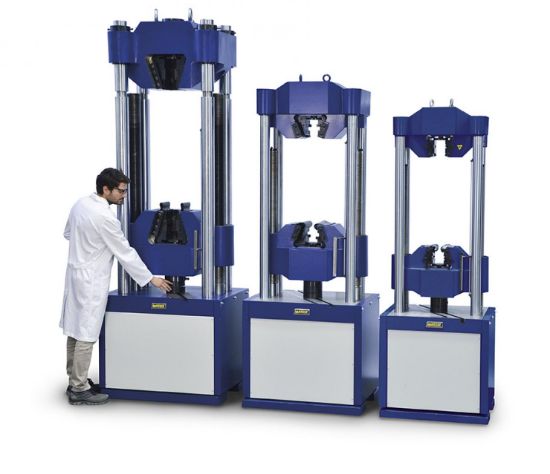

The MATEST Tensile Testing Machine with 600 kN capacity is engineered for testing metallic round and flat rebars, as well as for determining tension, compression, bending shear strength, and assessing compression and flexure strength on concrete. Built for precision and heavy-duty use, this machine combines robust design with high measurement accuracy, making it ideal for modern materials testing laboratories.
Product Features
- Load capacity: 600 kN suitable for a wide range of metal and concrete testing applications
- Load accuracy from 10% of the full scale: ± 1% for reliable measurements
- Test speed: max 85 mm/min; min 0.5 mm/min enabling flexible test configurations
- Independent linearity of piston stroke displacement: ± 0.05% ensuring precise control
- Max crosshead moving speed: 200 mm/min for fast adjustments
- Piston stroke: 580 mm allowing extended testing range
- Horizontal clearance: 545 mm to accommodate various specimen sizes
- Net distance between grips (without piston stroke): 750 mm
- Columns diameter: 70 mm providing stability during high-load testing
- Dimensions of grips for rounds and flats (length × width): 90×90 mm
- Net distance between compression platens (without piston stroke): 620 mm
- Dimensions of platens (included): 128×30 mm
- Large load frame height: 2550 mm supporting tall specimens
- Frame width: 770 mm and depth: 600 mm ensuring a compact footprint
- Robust frame weight: approx. 1780 kg for operational stability
- Power supply: 380V, 3 phase, 50 Hz for industrial lab environments
- Absorbed power: 3.5 kW ensuring efficient operation
Benefits
- High load capacity and versatility make it ideal for both metallic and concrete specimen testing
- Precise piston and crosshead movement deliver accurate, repeatable test results
- Wide testing range supports tension, compression, bending, and shear strength assessments
- Robust design and heavy frame ensure stability and durability during high-capacity tests
- Quick setup and adjustment with generous piston stroke and crosshead speeds
Why Choose the MATEST Tensile Testing Machine 600 kN?
Perfect for laboratories needing versatile, high-capacity performance, the MATEST Tensile Testing Machine 600 kN combines precision, power, and a robust design. Engineered for reliable testing of metallic rebars and concrete, it ensures consistent, high-quality data for research, quality control, and certification in modern testing facilities.
