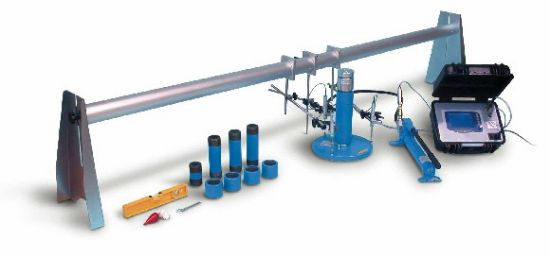

The MATEST Plate Bearing Digital Test Set with 200 kN capacity is engineered for advanced, precise evaluation of soil bearing capacity in field conditions. Featuring the Cyber-Plus Progress touch-screen data acquisition system and three linear displacement transducers, this system delivers highly accurate measurements, real-time visualization, and streamlined data management for professional geotechnical applications.
Product Features
- Hydraulic jack 200 kN capacity (S225-01), complete with hand pump, rubber pipe, extension rods, and carrying case
- Upper spherical seat (S226-13) for optimal load transfer
- Pressure transducer (C116-09S) connected to the pump for precise digital load monitoring
- Cyber-Plus Progress touch-screen (C405-15M) for real-time data acquisition, visualization, and direct PC/printer connectivity
- S224-21N software for processing and analyzing test data
- Load plate Ø 300 mm (S226-05) and intermediate plate Ø 160 mm (S226-06)
- Datum bar assembly (S222-03), 2.5 m telescopic aluminium, adjustable in height with base supports, plumb, and spirit level (packed separately)
- Three linear displacement transducers, 50 mm travel (S336-14)
- Three extension cables for transducers, 5 m long (S336-31)
- Three articulated transducer supports with adjustment device (S226-16)
- Three universal coupling pliers for transducers (S335-15)
Benefits
- High-capacity 200 kN system suitable for large-scale and demanding projects
- Accurate digital measurement combined with robust field-ready design
- Real-time data acquisition and processing improves efficiency and reporting
- Complete system simplifies setup and testing on various site conditions
Why Choose the MATEST Plate Bearing 200KN, Digital, Datatronic?
Combining powerful digital precision, a 200 kN hydraulic jack, and the user-friendly Cyber-Plus system, this test set provides unmatched reliability and efficiency for soil bearing capacity assessments. Ideal for geotechnical engineers who need robust, accurate, and streamlined testing solutions in the field.
