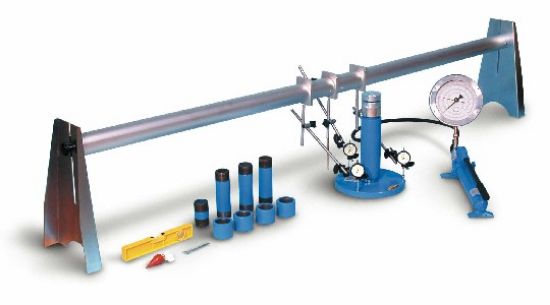

The MATEST Plate Bearing Digital Test Set with a 200 kN capacity provides precise soil bearing capacity testing through a digital measuring system. This advanced kit includes three digital manometers and a high-resolution digital pressure manometer, offering enhanced accuracy and data clarity compared to traditional analogue systems.
Product Features
- Hydraulic jack 200 kN capacity (S225-01) complete with hand pump, rubber pipe, extension rods, and carrying case
- Digital pressure manometer 0–200 kN with 10 N resolution (S225-02D) replacing the standard analogue gauge
- Upper spherical seat (S226-13) for effective load distribution
- Load plate Ø 300 mm (S226-05) and intermediate plate Ø 160 mm (S226-06)
- Datum bar assembly (S222-03), 2.5 m telescopic aluminium, height adjustable with base supports, plumb, and spirit level (packed separately)
- Three digital manometers for real-time displacement readings
- Three articulated dial gauge supports with adjustment device (S226-16)
Benefits
- Digital system improves measurement accuracy and simplifies data interpretation
- Compact and durable kit designed for field use in demanding conditions
- Complete system reduces setup time and enhances testing efficiency
- High-resolution digital pressure manometer ensures precise load tracking
Why Choose the MATEST Plate Bearing Digital 200KN, 3 Dial Gauges?
This professional-grade digital test kit combines the reliability of a 200 kN hydraulic jack with the precision of digital measurement technology. Ideal for engineers who need accurate and easy-to-read field data, it’s the modern choice for effective plate load testing.
