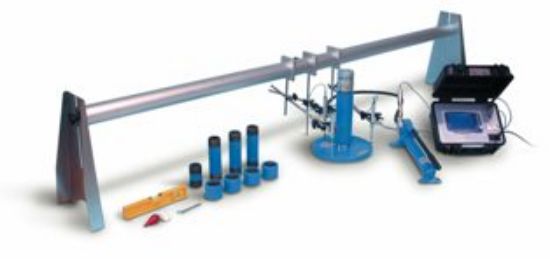

The MATEST Plate Bearing Digital Test Set with 100 kN capacity is engineered for high-precision soil bearing capacity testing. Equipped with the advanced Cyber-Plus Progress data acquisition system and three linear displacement transducers, this comprehensive system ensures accurate measurement, visualization, and processing of test data, suitable for modern geotechnical applications.
Product Features
- 100 kN hydraulic jack (S222-01) complete with hand pump, rubber pipe, extension rods, and carrying case
- Upper spherical seat (S226-13) for uniform load distribution
- Pressure transducer (C116-09S) connected to the pump for precise load monitoring
- Cyber-Plus Progress touch-screen (C405-15M) for real-time data acquisition, processing, and storage
- S224-21N software for comprehensive test data analysis
- Load plate Ø 300 mm (S226-05) and intermediate plate Ø 160 mm (S226-06)
- Datum bar assembly (S222-03), 2.5 m long, telescopic aluminium, adjustable in height, with base supports, plumb, and spirit level (packed separately)
- Three linear displacement transducers, 50 mm travel (S336-14)
- Three extension cables for transducers, 5 m long (S336-31)
- Three articulated transducer supports with adjustment device (S226-16)
- Three universal coupling pliers for transducers (S335-15)
Benefits
- Accurate digital load and displacement measurement for reliable test results
- Real-time data visualization and automatic storage with Cyber-Plus touch-screen system
- Complete field-ready system for quick and efficient plate bearing tests
- Durable components ensure dependable performance in challenging site conditions
Why Choose the MATEST Plate Bearing 100KN, Digital, Datatronic?
This system integrates digital precision and robust design for geotechnical professionals requiring advanced, reliable, and user-friendly equipment. With the Cyber-Plus data acquisition system and three transducers, it delivers superior accuracy and streamlined reporting, supporting better on-site decision-making.
