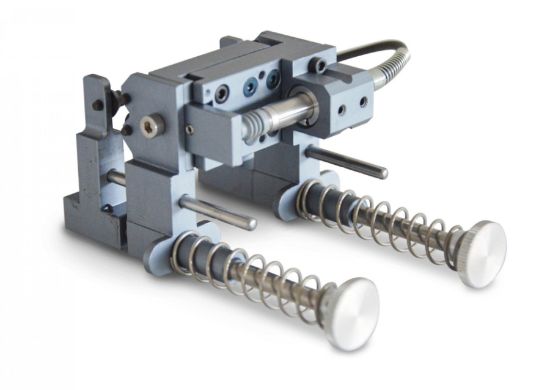

MATEST Mechanical Extensometer Complete is a precision device for measuring elastic elongation of specimens in tensile tests. Featuring a mechanical slide, LVDT transducer, and spring closures, it offers easy and secure attachment to samples. Adjustable gauge lengths and robust construction make it ideal for accurate elongation measurement before specimen breakage.
Product Features
- Mechanical slide with LVDT transducer for reliable data capture
- Adjustable gauge lengths: 50 mm, 100 mm, and 200 mm via extension rods
- Stroke: 10 mm, offering sufficient range for elastic measurements
- Precision: 0.001 mm for high‑accuracy elongation readings
- Fits round specimens from Ø 3–32 mm and flat specimens from 1–32 mm thickness (min. width 15 mm)
- Quick, secure sample mounting with spring closures
- Minimum distance between grips: 15 mm
- Designed for use up to the elastic limit; must be removed before specimen failure
Benefits
- High‑precision measurement improves the reliability of tensile test results
- Adjustable gauge length adds flexibility for different specimen sizes
- Easy attachment and removal reduce setup time and operator effort
- Robust and compact design ensures long‑term durability
- Compatible with various specimen shapes and materials
Why Choose the MATEST Mechanical Extensometer Complete?
Ideal for labs that demand precise and repeatable elastic elongation measurement, this MATEST extensometer combines versatility, accuracy, and user‑friendly design. Its adjustable gauge length, fine precision, and sturdy build make it a reliable tool for quality control and research applications.
