The MATEST Constant Head Permeability Cell, 75 mm in diameter, is designed for accurate permeability testing of granular, gravel, and sand soils. Water is passed through the specimen from a constant level tank, and pressure points at different levels connect to manometer tubes on a graduated stand for precise measurement.
Product Features
- Used for determining permeability of granular, gravel, and sand soils
- Specimen formed in acrylic permeability cell
- Water flow maintained from constant level tank
- Pressure points at different levels connected to manometer tubes on a stand with graduated scale

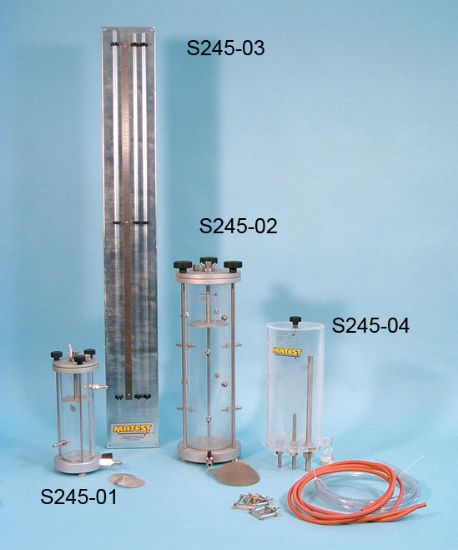

- Available models:
- S245-01: cell Ø 75 mm, three pressure take-off points, weight: 3 kg
- S245-02: cell Ø 114 mm, six pressure take-off points, weight: 7 kg (requires two manometer tube stands mod. S245-03)
- S245-03: manometer tubes and stand, comprising three constant-bore tubes, graduated scale, tubing, and connectors, dimensions 210x50x1160 mm, weight: 5 kg approx.
- S245-04: constant level tank, acrylic plexiglass, wall mounting, adjustable inlet/outlet/overflow pipes, weight: 3 kg approx.
- Acrylic plexiglass body held between two anodized aluminium end plates
Benefits
- Enables precise permeability measurement of sand, gravel, and granular soils
- Durable construction with acrylic and aluminium ensures long-term laboratory use
- Pressure points and manometer tube system provide accurate readings
- Compatible with additional components like constant level tank and manometer stands for complete testing setup
Why Choose MATEST Constant Head Permeability Cell?
This cell provides a reliable and accurate solution for laboratory soil permeability testing, ensuring precise measurements and flexible setup options for granular and sand soils.
