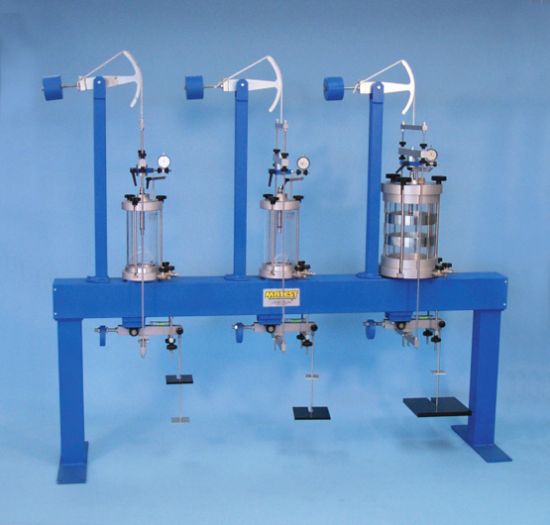

The MATEST Consolidation Load Frame, 3-Place, is designed to apply a constant load to the piston of triaxial cells, significantly reducing consolidation testing times while freeing up compression machines. It measures the axial strain of specimens and can perform anisotropic consolidation simultaneously on up to three specimens.
Product Features
- Applies load via hanger with direct ratio 1:1 or lever with ratio 5:1
- Maximum load of 250 Kg per place
- Robust metallic construction ensuring durability and stability
- Accepts up to 3 triaxial cells for specimen diameters ranging from 35 mm to 100 mm
- Supplied with suitable centering plate cells
- Measures axial strain and performs anisotropic consolidation for multiple specimens simultaneously
- Dimensions: 2300 x 400 x 1800 mm
- Weight: approximately 150 Kg
- Supplied without cells, weights, and dial gauges (to be ordered separately)
Accessories
- S273 KIT: Set of slotted weights 50 Kg
- S377: Dial gauge 25 mm stroke, 0.01 mm division, for specimens up to dia. 50x100 mm
- S379: Dial gauge 50 mm stroke, 0.01 mm division, for specimens from dia. 70x140 mm
As an Alternative
- S336-12: Linear displacement transducer, 25 mm travel
- S336-14: Linear displacement transducer, 50 mm travel
- S336-31: Extension cable, 5 metres long, for transducer
Benefits
- Reduces consolidation testing time, increasing laboratory throughput
- Allows simultaneous testing of up to three specimens for efficient workflow
- Flexible load application methods ensure adaptability to various test requirements
- Durable and stable design minimizes maintenance and ensures long-term use
- Compatible with a range of accessories and alternatives for enhanced testing capabilities
Why Choose the MATEST Consolidation Load Frame, 3-Place?
The MATEST Consolidation Load Frame, 3-Place, is an essential piece of equipment for geotechnical laboratories seeking to optimize consolidation testing efficiency and accuracy. Its multi-specimen capability, robust construction, and wide accessory compatibility make it a reliable and versatile solution for advanced soil testing.
