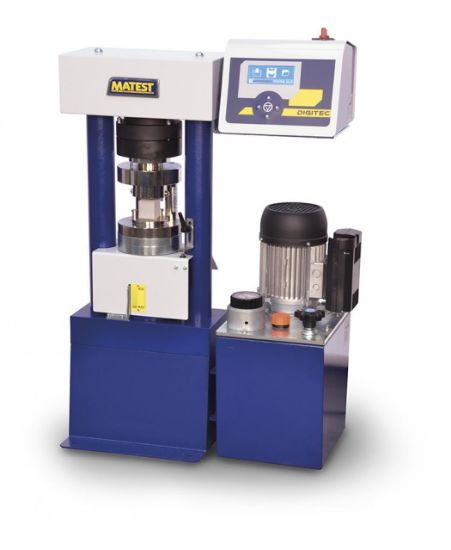

The MATEST Compression Machine 500 kN with Digitec control unit is a motorized testing machine designed for cement, mortar specimens, bricks, rocks, refractories, and similar materials. Featuring a two-column high-stiffness frame, it offers reliable performance for precise compression testing. The machine includes a maximum vertical daylight of 185 mm between platens, with platens diameter of 153 mm and a ram travel of approximately 45 mm.
Product Features
- Motorized compression machine with 500 kN capacity and Digitec digital control
- Two-column high stiffness frame for stability and durability
- Maximum vertical daylight between platens: 185 mm
- Platens diameter: 153 mm
- Ram travel: approximately 45 mm
- Accuracy Class 1 starting from 1/10 of the scale for precise measurements
- Gauge diameter 200 mm with range 0-300 kN and subdivision of 2.5 kN
- Supplied complete with lower compression platen and coupling piece for easy attachment
- Power supply: 230V 1ph 50Hz, 750W
- Weight: 300 - 330 kg
Benefits
- Accurate and reliable compression testing for a wide variety of materials
- Robust two-column frame ensures minimal deformation and high stiffness
- Digitally controlled system enhances precision and user-friendliness
- Easy setup with supplied platen and coupling for quick test preparation
- Suitable for laboratories and quality control in construction and material industries
Why Choose the MATEST Compression Machine 500 kN with Digitec?
The MATEST Compression Machine 500 kN with Digitec control combines strength, precision, and ease of use for efficient testing of cement, mortar, bricks, and other materials. Its advanced digital control and sturdy frame make it an indispensable tool for accurate compressive strength testing.
