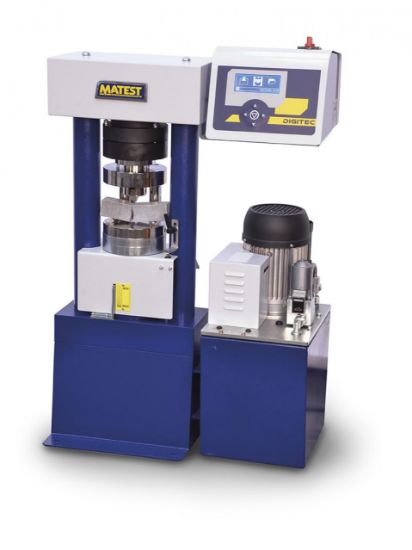

The MATEST Compression Machine 500 kN with Autotec control unit is a robust, motorized testing solution for compression tests on cement and mortar specimens, bricks, rocks, and refractories. Featuring a high-stiffness two-column frame and precise measuring system, this machine delivers accurate and repeatable results for high-capacity testing in demanding laboratory environments.
Product Features
- Motorized compression machine with advanced Autotec control unit for reliable testing
- High-capacity design with maximum load of 500 kN for larger and stronger specimens
- High-stiffness two-column frame ensuring stability and reduced deformation during testing
- Max. vertical daylight between platens: 185 mm to handle various specimen sizes
- Platens diameter: 153 mm for uniform load distribution
- Ram travel approximately 45 mm for effective specimen compression
- Accuracy: Grade 1 starting from 1/10 of the scale for consistent measurement
- Gauge diameter: 200 mm with measuring range 0–300 kN, subdivision 2.5 kN
- Supplied complete with lower compression platen and coupling piece for easy and quick setup
- Power supply: 230V, 1 phase, 50Hz, 750W motorized operation
- Machine weight: 300–330 kg ensuring operational stability
Benefits
- High capacity testing up to 500 kN expands testing capabilities for stronger materials
- Motorized operation reduces manual workload and increases testing throughput
- Stable two-column frame improves test accuracy and reliability
- Precise measurement system ensures repeatable results for quality control
- Quick assembly with included platen and coupling piece minimizes downtime
Why Choose the MATEST Compression Machine 500 kN Autotec?
Ideal for labs handling a wide range of cement and refractory materials, the MATEST Compression Machine 500 kN with Autotec control unit offers a reliable, high-capacity testing solution. Its robust frame, motorized design, and precision measuring system ensure consistent, high-quality results, making it an essential tool for modern materials testing laboratories.
