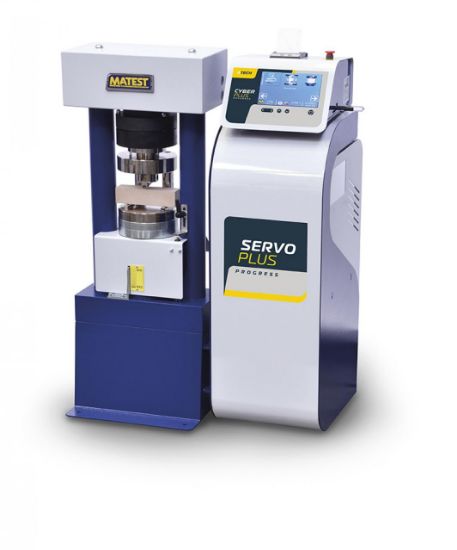

The MATEST Compression and Flexural Testing Machine with dual measuring range 500/15 kN and Servo‑Plus progress control unit is a fully automatic, motorized system designed for precise testing of cement and mortar specimens, bricks, rocks, and refractories. With a high‑stiffness two‑column frame and advanced dual range capability, it delivers accurate, repeatable results for both compression and flexural tests in modern laboratory environments.
Product Features
- Fully automatic motorized operation with advanced Servo‑Plus progress control unit
- Dual measuring range: 500 kN for compression and 15 kN for flexural testing
- Two high‑accuracy pressure transducers granting Class 1 accuracy starting from 10% of the scale
- Max. vertical daylight between platens: 185 mm for versatile specimen sizes
- Horizontal daylight between columns: 175 mm providing flexible sample placement
- Platens diameter: 153 mm ensuring uniform load application
- Ram travel approximately 45 mm for effective compression and flexural testing
- Supplied complete with lower compression platen and coupling piece for fast, secure assembly
- Power supply: 230V, 1 phase, 50Hz, 750W motorized system
- Machine weight: 310–340 kg ensuring operational stability
Benefits
- Dual range capability supports a wide spectrum of testing applications in one machine
- Fully automatic Servo‑Plus control increases testing efficiency and reduces operator effort
- Robust two‑column frame and precision transducers deliver repeatable, accurate results
- Quick assembly with supplied platen and coupling piece minimizes downtime
- Stable and reliable design ensures consistent performance in demanding lab settings
Why Choose the MATEST Press Dual Range 500/15 kN Servo‑Plus?
Engineered for labs that need precision and automation, the MATEST Press Dual Range 500/15 kN with Servo‑Plus control combines high capacity, dual range flexibility, and full automation. Perfect for testing cement, mortar, bricks, and refractory materials, it offers consistent, high‑quality results and ease of use for modern materials testing laboratories.
