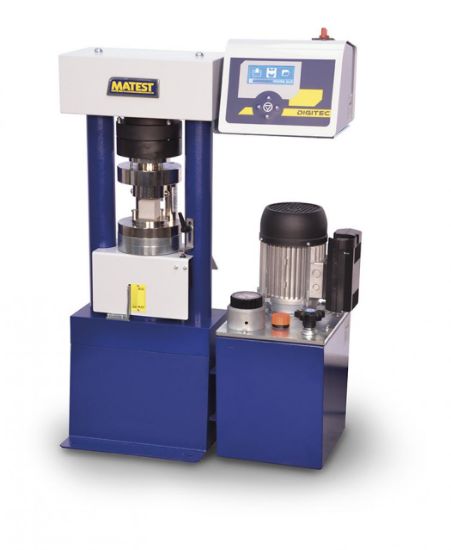

The MATEST Compression / Flexural Testing Machine with dual measuring range 500/15 kN is a manual testing device designed for cement and mortar specimens, bricks, rocks, refractories, and similar materials. Equipped with two gauges and two pressure transducers, it offers precise measurement for both high and low load ranges with Class 1 accuracy. The machine features a robust two-column high stiffness frame ensuring stability during testing.
Product Features
- Manual compression/flexural testing machine with dual measuring range of 500 kN and 15 kN
- Two gauges for accurate testing across a wide range of specimen strengths
- Two-column high stiffness frame for enhanced stability and durability
- Maximum vertical daylight between platens: 185 mm
- Horizontal daylight between columns: 175 mm
- Platens diameter: 153 mm
- Ram travel: approximately 45 mm
- Two pressure transducers providing Class 1 accuracy starting from 10% of the scale for both ranges
- Supplied complete with lower compression platen and coupling piece for easy fixation of compression devices
- Power supply (for motorized models): 230V 1ph 50Hz 750W
- Weight: 310 - 340 kg
Benefits
- Versatile testing capability for both high and low load ranges with dual gauges
- Stable and durable frame minimizes deformation and ensures accurate results
- High-accuracy pressure transducers enhance measurement reliability
- Complete setup allows quick and easy test preparation
- Suitable for use in construction labs and material testing facilities
Why Choose the MATEST Compression / Flexural Testing Machine Dual Range 500/15 kN?
The MATEST Compression / Flexural Testing Machine Dual Range 500/15 kN with Digitec control combines precision, versatility, and durability. Its dual gauges and high accuracy make it ideal for laboratories requiring reliable testing of a wide range of materials and load conditions.
